Removing LOTO - ISC

About this task

Notice

Potential B0 drift interference

B0 drift can be effected if the gradient coil temperature is not cooled down.

You must wait one hour after restoring power before doing certain calibrations and/or a customer scan.

Procedure

Alert necessary personnel that power is being restored.
Remove the lock and the tag from the PDU INPUT circuit breaker.
Rotate the larger main breaker labeled INPUT clockwise to the red On (1) position.
Press the green EMO RESET button.

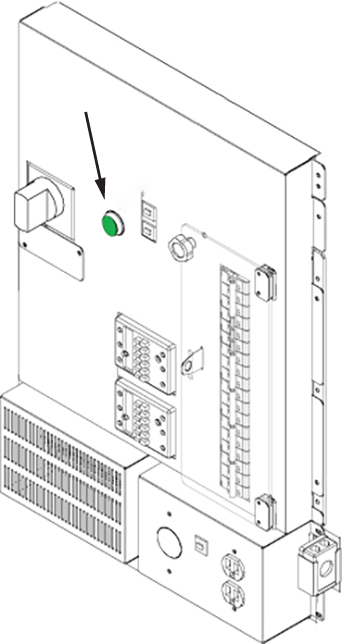

Figure 1. EMO RESET button
Boot Signa and log in to scanning level.
