Installing the PS filter box

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	15 minutes	15 minutes


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Replacement parts
Item	Quantity	Part number	Manufacturer
ISC Penetration Wall Filter Box	1	6859100	-

About this task

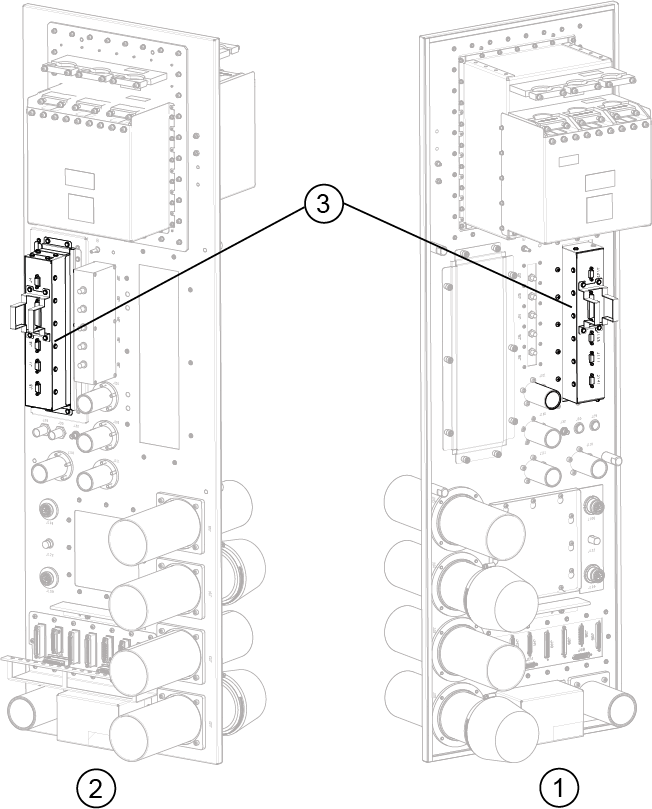

Item	Description
1	Scan room side
2	Equipment room side
3	PS filter box

Procedure

From the equipment room side of the Penetration Panel, move the PS filter box into place on the Penetration Panel.

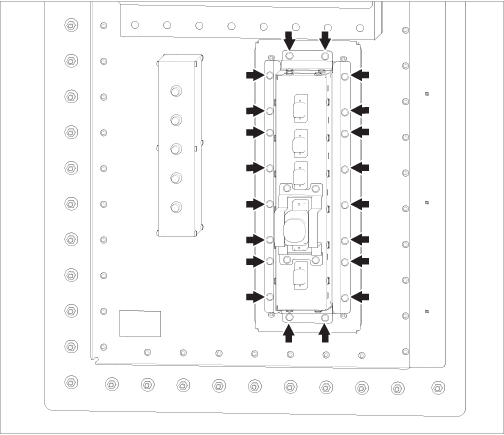

Figure 1. ISC PW filter box screw locations
Secure the PS filter box to the Penetration Panel with 20 screws.
On the equipment room side, connect each of the PS filter box cables.

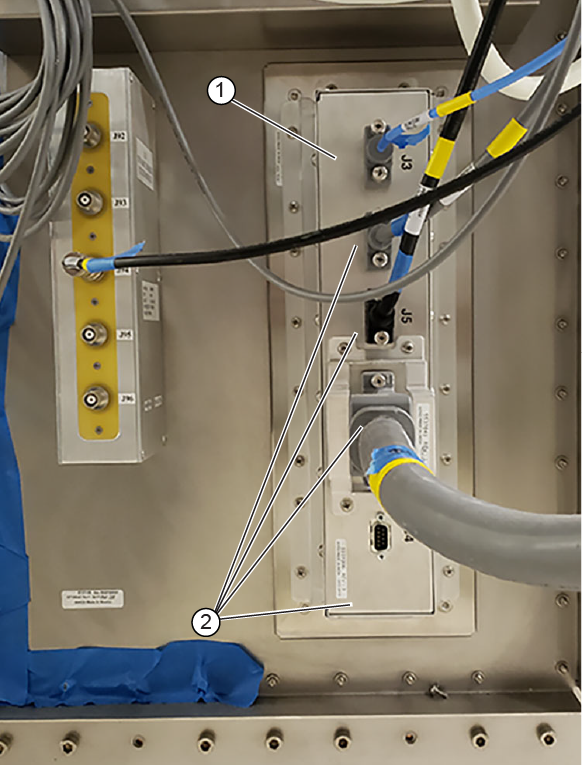

Figure 2. Equipment room PS filter box cables

1 PS filter box
2 PS filter box cables
On the scan room side, connect the PS filter box cables.

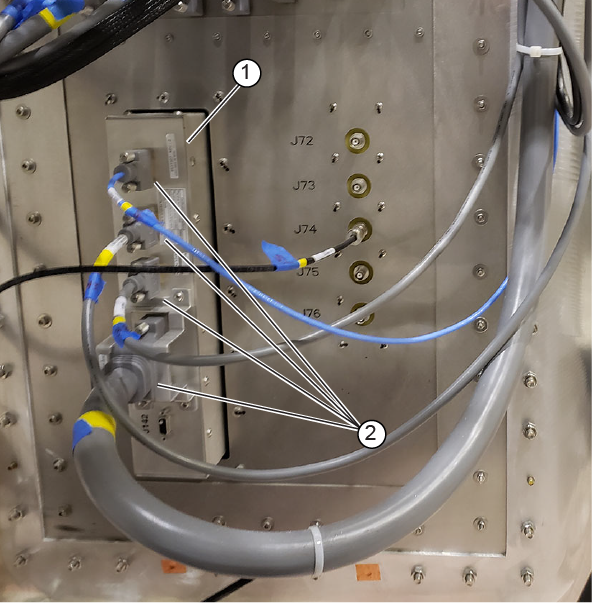

Figure 3. Scan room PS filter box
1 PS filter box
2 PS filter box cables
