SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30A4FE20GYZ
Topic ID: id_13106056 Version: 4.1
Date: Jul 13, 2021 7:04:33 PM

Power on sequencing 2

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	30 minutes	-


Required conditions
ICC Hose Inspection, Coolant Fill, and Coolant Leak Check completed.

About this task

The following provides an overview of each main component in this sequence:

List of Procedures

This document includes the following power on checklist procedures:

AC distribution sub breaker on
RF power amp sub breaker on
Gradient sub breaker on

Procedure

Turn on the switches of the following components in ISC.
- RF amp
- KASC chassis
- GP4
- PHPS2

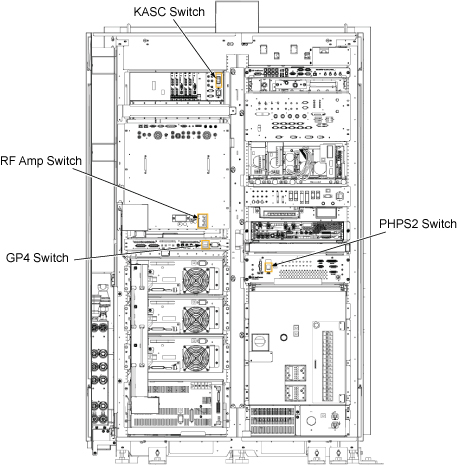

Figure 1. Components switches
Switch the rest of breakers to on according to the following order.
1. AC distribution sub breaker on
2. RF power amp sub breaker on
3. Gradient sub breaker on
Push the EMO Reset SW on.
