Discovery MR750w and SIGNA™ Architect T 3.0T System Service Methods
5690002-2EN Revision 4
Object ID: 00000018WIA30841130GYZ
Topic ID: id_12374940 Version: 1.6
Date: Aug 14, 2019 8:02:18 PM

Transient Detection Module (TDM) Replacement

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	30 minutes

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non-magnetic Phillips Screwdriver	1	-	-	-
Basic Hand Tool Set	1	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
Transient Detection Module (TDM)	1	-	See FRU Manual	-

Table 4. Safety

Notice

When removing and or replacing the Transient Detection Module (TDM) on the side of the magnet, ensure that the module is as far away from the magnet as possible at all times.

Topic ID: id_SL1962441-1123654

Removing TDM

Procedure

Perform LOTO on the PEN cabinet. See the MR Service Safety Manual, PN 5452735.
Turn off the Scan Room Power Supply (SRPS) at the penetration cabinet.
Remove the left side center cover and left side rear cover. See Side and Top Cover Removal and Installation.

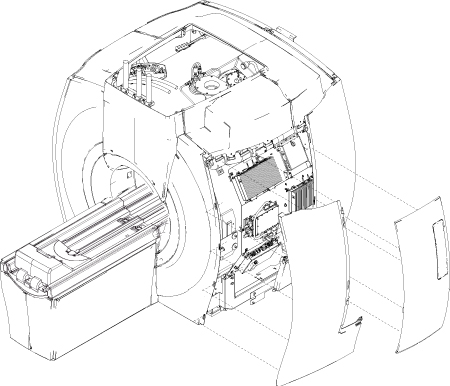

Figure 1. Left Side Center Cover and Left Side Rear Cover
Disconnect all cables connected to the TDM.

Note:
Remove J1 before J12 to prevent damage to the end of the cable connected to J12.

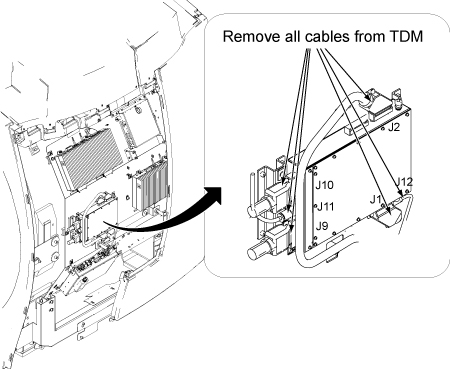

Figure 2. TDM Cable Connections
Remove the four screws holding the TDM to the magnet.

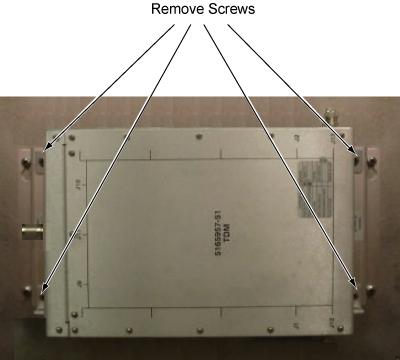

Figure 3. Remove TDM Screws

CAUTION

Strong magnetic field!

The module has no ferrous material and is not attracted to the magnet, but eddy currents set up by the strong magnetic field interacting with the TDM can make it very hard for one person to handle.

When removing and or replacing the TDM on the side of the magnet, keep the module as far away from the magnet as possible at all times.

While carrying the module out of the magnet room, stay as far away from the magnet as possible.

Topic ID: id_SL1962448-1123654

Installing TDM

Procedure

While carrying the module into the magnet room, stay as far away from the magnet as possible.

CAUTION

Strong magnetic field!

The module has no ferrous material and is not attracted to the magnet, but eddy currents set up by the strong magnetic field interacting with the TDM can make it very hard for one person to handle.

When removing and or replacing the TDM on the side of the magnet, keep the module as far away from the magnet as possible at all times.

Secure the module to the magnet by tightening the four screws provided.

Attach all cables that were previously removed. See Figure 2.

Note:
To prevent damage to the cables, connect J12 before J1.

Topic ID: id_15263168

Finalization

Procedure

Replace side cover.
Remove LOTO from the PEN cabinet. See the MR Service Safety Manual, PN 5452735.
Complete a test scan to make sure the system is functional.
Run TNS Datapath Diagnostics to confirm there are no remaining issues.
