Identifying HEC type
Identify the HEC type.

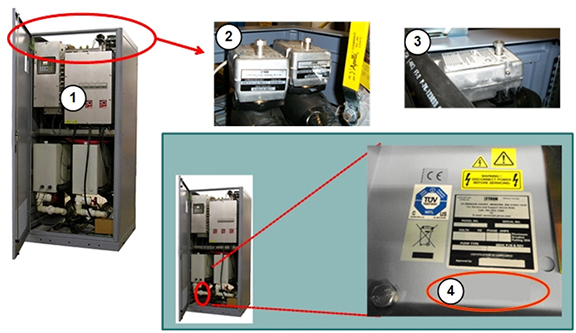

Figure 1. HEC Type G6000EN
| 1 | HEC catalog number G6000EN | 3 | Chilled air mixing valve |
| 2 | GC/PE mixing valve | 4 | No G-catalog label |

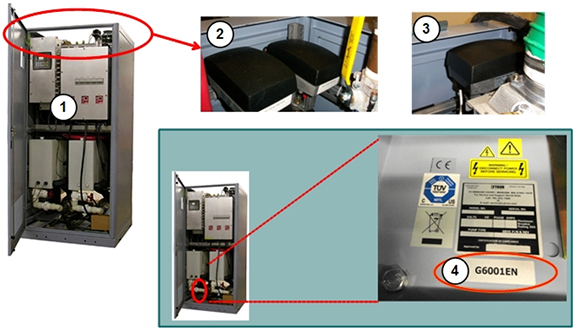

Figure 2. HEC Type G6001EN
| 1 | HEC catalog number G6001EN | 3 | Chilled air mixing valve |
| 2 | GC/PE mixing valve | 4 | Catalog label G6001EN |
