Removing LOTO - Global Operator Cabinet (GOC) and operator workspace

Procedure

Alert necessary personnel that power is being restored.
Replace the cover on the Host PC cabinet.
Remove the personal LOTO device(s) from the front panel of the PGR PDU.
At the front panel of the PGR PDU, switch the Host circuit breaker to the ON position.

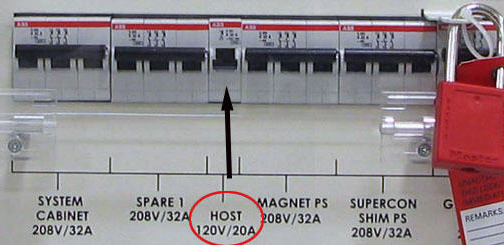

Figure 1. GOC Power Lockout Location on PGR PDU
Restart the host computer.
