Checking the touch-and-go strip function

Makes sure the touch-and-go strips display the landmark on the In-Room Display (IRD) correctly.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-5 minutes-

Procedure

  1. Press the touch-and-go landmark strip on one side of the table at any location.
  2. Note: If more than five seconds elapse between touching the touch-and-go landmark strip and pressing Landmark or Advance to Scan, the green landmark line is removed from the IRD.
    Make sure the landmark location appears as a green dotted line on the IRD.

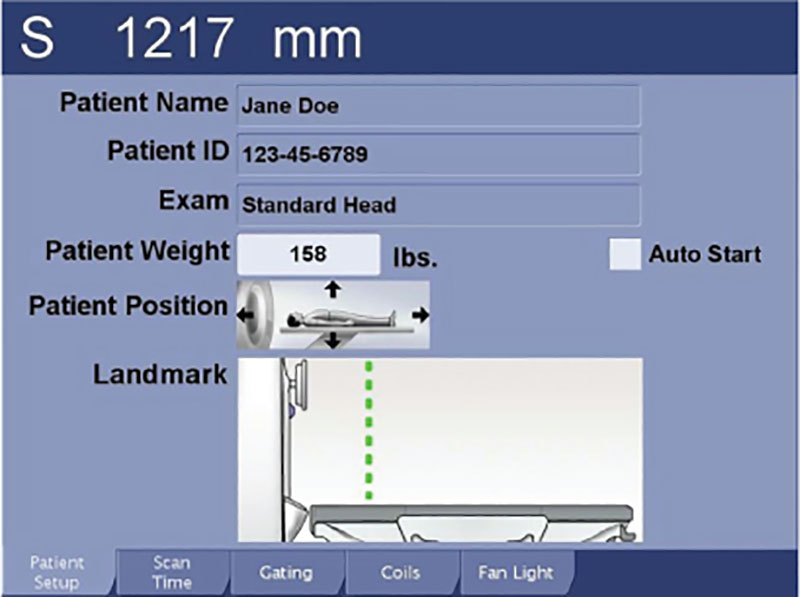

    Figure 1. Landmark location
  3. Repeat the procedure for the opposite side touch-and-go landmark strip.
