Checking the table up and down functions

Makes sure the patient table up and down movement systems operate correctly.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-

Procedure

  1. Make sure the cradle is in the home position.
  2. Press the down pedal and make sure the table moves all the way down.

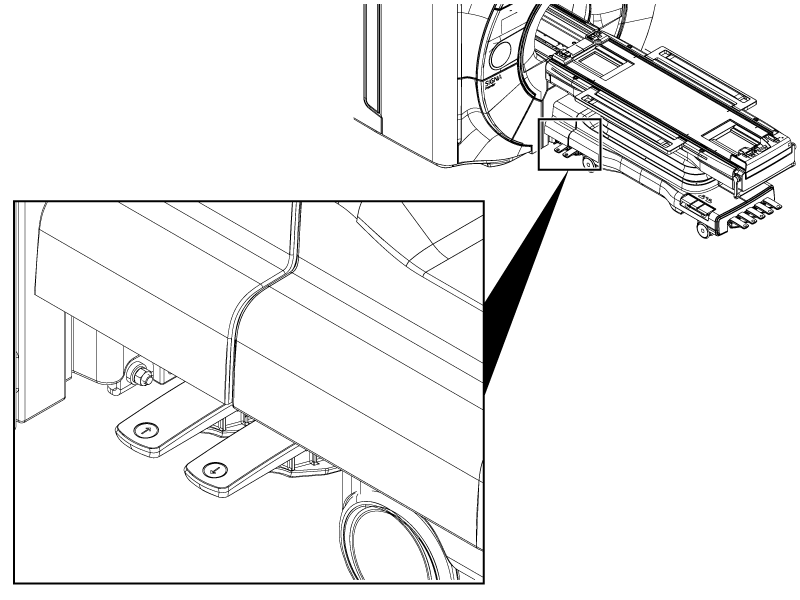

    Figure 1. Table up and down pedals
  3. Press the up pedal and make sure the table moves all the way up.
  4. Make sure the table moves smoothly through its entire range of motion.
