• SIGNA™ Hero 3.0T Service Methods
  • 5852800-8EN Revision 1.0
  • Object ID: 00000018WHA308F62GYZ
  • Topic ID: id_2001494 Version: 9.8
  • Date: Aug 31, 2021 12:31:41 PM

Checking the cradle in and out functions

Makes sure the patient table cradle in and out movement system operates correctly.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-

Procedure

  1. Press the cradle in button on the control panel and make sure the cradle moves inside the bore.

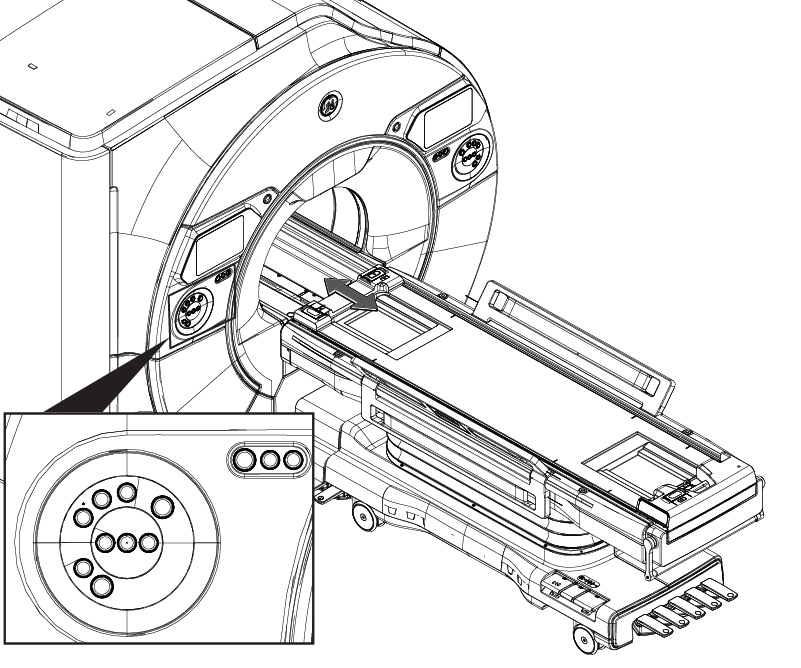

    Figure 1. Cradle in and out check
  2. Press the cradle out button on the control panel and make sure the cradle moves outside the bore.
  3. Make sure the cradle moves smoothly without interference from the bridge.
