Fiber Optic Light Meter Kit Parts Break Down.

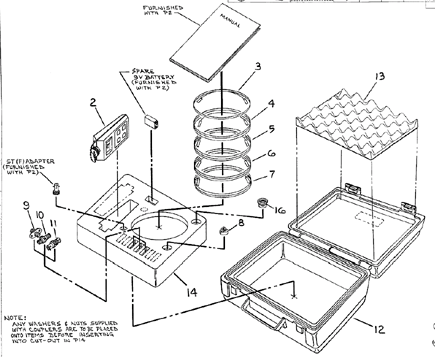

Fiber Optic Light Meter Kit (46-317830G1). See items in Table 1 and Figure 1.
| Item | Description | Part Number | Quantity |
|---|---|---|---|
| 1 | Case, Foam, Label | 46-317830G50 | 1 |
| 2 | SMA (Female - Female) Simplex Bulkhead Connector | 46-287713P1 | 1 |
| 3 | STC (Female - Female) Simplex Bulkhead Connector | 46-317863P2 | 1 |
| 4 | CFC (Female - Female) Simplex Bulkhead Connector | 46-317863P1 | 1 |
| 5 | Fiber Optic Adapter Assembly For FOT - 21 Meter | Supplied With Item 6 | 1 |
| 6 | Fiber Optic Light Meter, 400-1014NM | 46-317827P1 | 1 |
| 7 | Spare +9v Battery | Supplied With Item 6 | 1 |
| 8 | FOT - 21 Fiber Optic Light Meter Instruction Manual | Supplied With Item 6 | 1 |
| 9 | ST Male - CFC Male (1 FT. Long) | 46-317849P1 | 1 |
| 10 | ST Male - ST Male (1 Meter Long) | 46-307584P3 | 1 |
| 11 | ST Male - SMA Male (1 Meter Long) | 46-317847P1 | 1 |
| 12 | ST Male - HP Male (1/2 Meter Long) | 46-317848P1 | 1 |
| 13 | HP Simplex Male Latching - Simplex Male Latching (1/2 Meter Long) | 46-307564P4 | 1 |
| 14 | HP Simplex/Duplex, Latching/Nonlatching Adapter For FOT-21 Meter | 46-320033G1 | 1 |
| 15 | Fiber Optic Adapter Assembly For F.O. Plethys. Probe | 46-320710G1 | 1 |
