Calibrate NEC monitor (for LCD2490WUXi and LCD2490WUXi2)

Procedure

Refer to the illustrations below for control locations and functions.

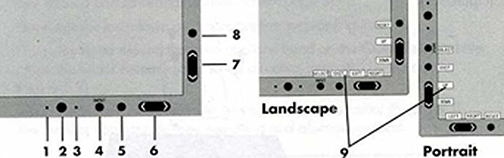

Name	Description
1 Ambi-Bright Sensor	Detects the level of ambient lighting, allowing the monitor to adjust to various settings for more comfortable viewing. Do not cover this sensor.
2 Power	Turns the monitor on and off.
3 LED	Indicates the power is on. Can be changed between blue and green in the Advanced On-Screen Manager (OSM) Control menu.
4 Input/Select	Enters the OSM Control menu and OSM sub-menus. Changes the input source when not in the OSM Control menu.
5 Exit	Exits the OSM Control menu and sub-menu.
6 Left/Right*	Navigates to the left or right through the OSM Control menu.
7 Up/Down*	Navigates up or down through the OSM Control menu.
8 Reset/Rotate OSM	Resets the OSM back to factory settings. Pressing this button when the OSM is not displaying rotates the OSM Control menu between portrait and landscape mode.
9 Key Guide	Displays on the screen when the OSM Control menu is accessed. The Key Guide rotates when the OSM Control menu is rotated.

* The Left/Right and Up/Down button functionality is interchangeable depending on the OSM orientation (landscape or portrait).

To display the Main Menu, press 5, 6, or 7.

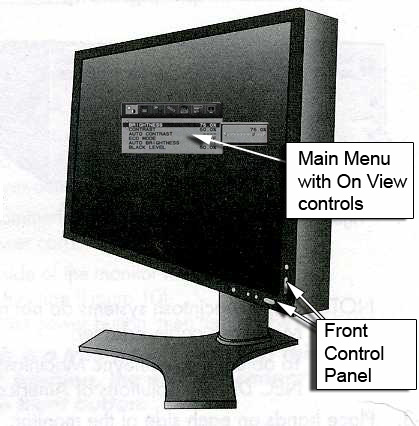

Figure 3. Main menu

Refer to the table below for monitor settings.

Table 1 Monitor settings
Monitor settings
	LCD2490WUXi	LCD2490WUXi2
Brightness:	50% (or the allowable maximum value that is less than 50%)	72.1% (or the allowable maximum value that is less than 72.1%)
Contrast:	40.3%	50.5%
Black Level:	50%	50%
ECO Mode:	Off	Off
Auto Brightness:	Off	Off
RGB <TAB>
Color Temp:	Native	Native

Proceed to Finalization.

Finalization

Procedure

To save adjustments, press the 1 button.
To exit the menu, press the 1 button again.
Return to LCD Monitor Installation to complete finalization steps.
