Inspecting the cryogen vent

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	-	-

Safety

Before working in any GE Healthcare MR suite or performing any GE Healthcare service procedure, you must:

Have read and understood all hazard conditions and safety requirements in the latest revision of the GE Healthcare MR Service Safety Manual (5452735).
Have successfully completed all relevant GE Healthcare Environmental Health and Safety (EHS) courses (or for non-GE employees, equivalent workplace training courses).
Comply with all site-specific training and workplace safety requirements.

If you have any safety concerns at any time, do not begin work or immediately stop work and move to a safe location. Immediately contact your supervisor or site safety officer for instructions on how to proceed.

Notice

Possible component damage

Vents are at risk for ruptures after a quench.

Thoroughly inspect vent systems at sites that experience a magnet quench. Vent systems have suffered vent joint failures on the second or third quench. Failure to inspect them results in vent system ruptures.

Procedure

Inspect the vent glass connection and clamps inside the magnet room and repair if necessary. Make sure the vent glass is properly wrapped, is not torn, and the clamps are tight and have not been loosened or misplaced.

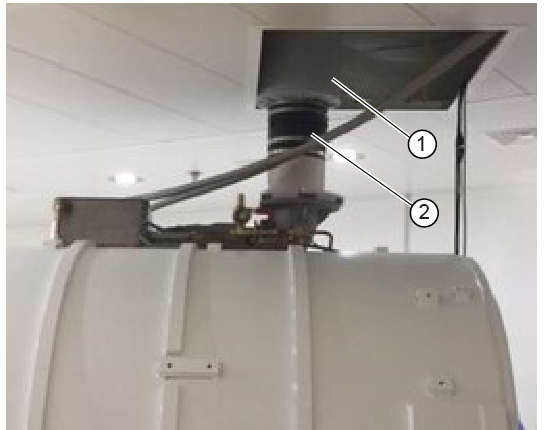

Figure 1. Example of vent glass connection

1 Insulation
2 Vent glass
Inspect the weep hole underneath the magnet manifold.
1. To determine if debris is preventing drainage of condensation, place a toothpick or other thin, nonmagnetic item into the hole to a depth of 1 inch.
2. If debris is present, contact the Online Center or Zone Service Engineer (ZSE) for further guidance.

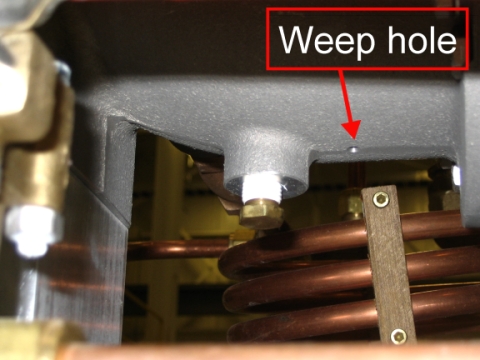

Figure 2. Weep hole
Inform the customer that it is time for the annual inspection of their quench duct.
