Doing the Patient Handling Power Supply (PHPS) board level diagnostic

The Patient Handling Power Supply (PHPS) board level diagnostic obtains status information on the ongoing board diagnostic of the internal power supplies.

Topic ID: id_SL1934835-1225094

Diagnostic path

Diagnostics > System Function > Patient Handling > PHPS Board Level Diagnostics

Diagnostics > Hardware Location > Integrated System Cabinet > Power/Support System > PHPS Board Level Diagnostics

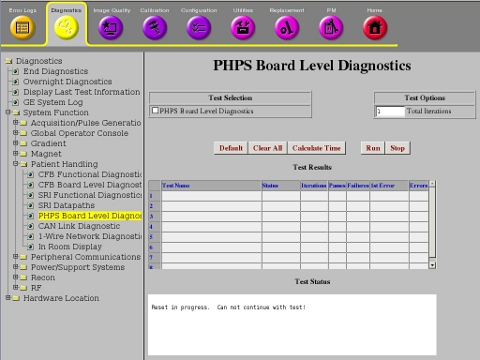

Figure 1. Data acquisition screen
Topic ID: id_SL1934837-1225094

Purpose

The PHPS board level diagnostic obtains status information on the ongoing board diagnostic of the internal power supplies.

Topic ID: id_SL1934838-1225094

Components tested

  • PHPS
Topic ID: id_SL4053815-1225094

Requirements

  • 1–wire bus
Topic ID: id_SL1934846-1225094

Test sequence

  1. Click Calculate Time for an estimate of the time it will take to run the selected diagnostics.
  2. Click Run to initiate test.
Topic ID: id_SL1934851-1225094

Results

Diagnostic results display a status of Pass or Fail. If you receive a Fail status, click GE System Log to view the error message. The system log records errors with the date, time, the process tested, and a detailed error message.
