SRF to RRX+DTX DP

Diagnostic Link

Diagnostics >> System Function >> RF >> Receiver Diagnostics

Diagnostics >> Hardware Location >> Magnet Room >> Receiver Diagnostics

Purpose

The SRF to RRX + DTX datapath diagnostic tests the IRF3’s ability to send sequence bus data to the DTX and RRX modules. All of the sequence bus data registers of the RRX and DTX modules are tested to ensure they capture the correct data from the sequence data stream. The AGP board runs the test.

Components Tested

Boards Tested

• IRF3

• DTX

• RRX

Requirements

None

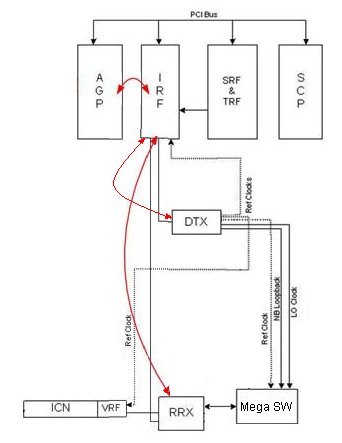

Block Diagram

Test Sequence

1. Click Calculate Time to get an estimate of the time it will take to run the selected diagnostics.

2. Click Run to initiate test.

   Note:

   The Test Options settings should not be changed from their default settings unless instructed to do so by a GE Healthcare engineer. There are very few circumstances when these settings ever need to be changed.

Expected Results

Output values are judged pass or fail. In the event of failure, the details of the failure can be found in the GE System Log.

Although, in the case of errors you can click the 1st Error number to see the nature of the error, it is recommended that you view the GE System Log to view all the errors that were recorded.

If DTX Board is replaced, please run:

• RF Calibration DP

• UPM Calibration Head

• UPM Calibration Body

No calibration needed if Receiver, IRF, or AGP are replaced.
