Configuring the Cedrus controller box

Procedure

  1. Go to the Service Browser.
  2. Go to Utilities > BrainWave Paradigm Manager.

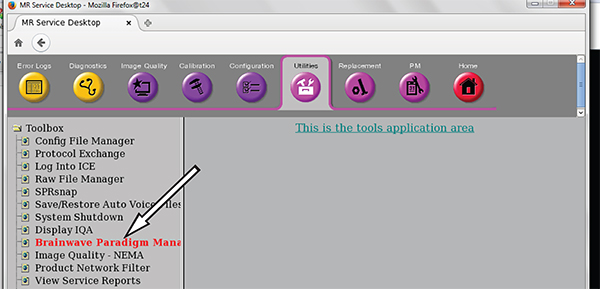

    Figure 1. BrainWave Paradigm Manager option
  3. Click BrainWave Paradigm Manager to start the tool. The Offline Paradigm Manager window launches.
  4. Click the Settings tab, then click PXE tab.
  5. Make sure PXE Application Controller Type is set to the correct controller type.

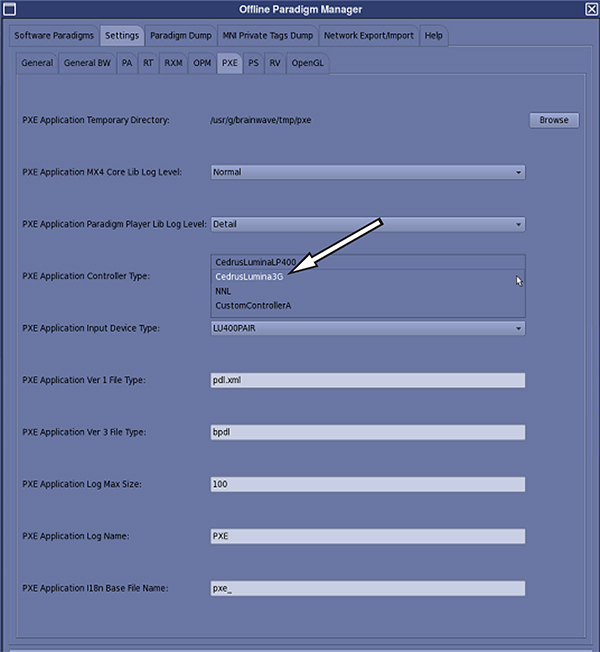

    Figure 2. Controller options

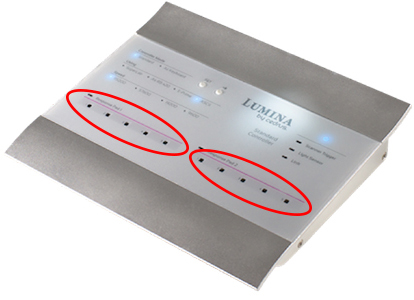

    Figure 3. Example of the Cedrus Lumina 3G response pad LEDs
  6. Leave the Offline Paradigm Manager window open and continue to the next section.
