NeoCoil Sentinel G1 wireless Audio System

Sentinel™ G1 Wireless Audio System

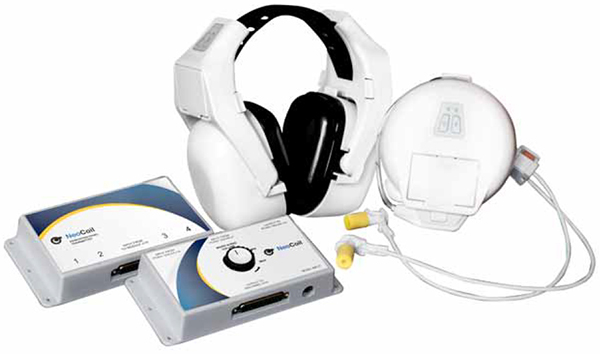

Figure 1. Sentinel™ G1 Wireless Audio System

Vendor Documentation:

  • NeoCoil Part# NC070IFU: Instructions for Use (eIFU)

  • NeoCoil Part# NC00S027: Sentinel G1 Wireless Audio System Installation Instructions (Paper Copy)

    Note:

    Both these instructions ship in the box with the wireless audio system.

Wireless Audio System FRUs:

The following are the GE Part numbers that will be stocked in GPRS.

Table 1. Wireless Audio System FRUs
GE P/N Neocoil P/N Description
5789394-F1NC069001FRU, TECHNOLOGIST CONSOLE INTERFACE
5789394-F2NC071000FRU, WIRELESS PATIENT HEADPHONES
5789394-F3NC075000FRU, WIRELESS AUDIO INTERFACE
5789394-F4NC079002FRU, PENETRATION PANEL TRANSMITTER
5789394-F5NC071002KIT, EAR CUSHION REPLACEMENT
5789394-F6NC075401AIRTUBE ASSEMBLY
5789394-F7NC075406EARBUD ASSEMBLY (QTY 250)
5789394-F8NC075407EARBUD ASSEMBLY (QTY 500)
5789394-F9NC082001Battery Pack
5789394-F10NC082000Battery Charger
Note:

In case of any unavailability/conflicts, please contact NeoCoil

NeoCoil Global Contact Information:

http://www.neocoil.com.
