SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA3087DF20GYZ
Topic ID: id_13106311 Version: 2.0
Date: Feb 24, 2021 3:38:35 AM

Doing the Signal Processing Unit (SPU) respiratory diagnostic

Topic ID: id_SL1935502-1224754

Diagnostic path

Diagnostics > Hardware Location > Magnet Room > PAC Diagnostics Test

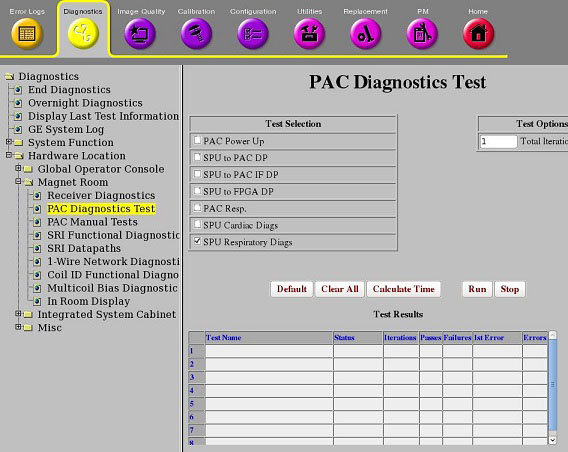

Figure 1. PAC Diagnostics

Topic ID: id_SL1935504-1224754

Purpose

This diagnostic verifies that the trigger signals (respiratory trigger), which are launched from the SPU in ICE, could be correctly captured by the sequencer module in ICE.

Topic ID: id_SL1935505-1224754

Components tested

SPU

Topic ID: id_SL1935508-1224754

Requirements

None

Topic ID: id_SL1935509-1224754

Block diagram

None

Topic ID: id_SL1935510-1224754

Test sequence

Click Calculate Time for an estimate of the time it will take to run the selected diagnostics.
Click Run to initiate the test.

Note:

Note: Do not change the Test Options settings from the default settings unless instructed to do so by a GE Healthcare engineer. There are very few circumstances when these settings need to be changed.

Topic ID: id_SL1935511-1224754

Test results

Diagnostic results display a status of Pass or Fail. If you receive a Fail status, click GE System Log to view the error message. The system log records errors with the date, time, the process tested, and a detailed error message.
