SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA3077DF20GYZ
Topic ID: id_13106310 Version: 2.0
Date: Feb 24, 2021 3:38:34 AM

Doing the Signal Processing Unit (SPU) cardiac diagnostic

Topic ID: id_SL1914826-1280246

Diagnostic path

Diagnostics > Hardware Location > Magnet Room > PAC Diagnostics Test

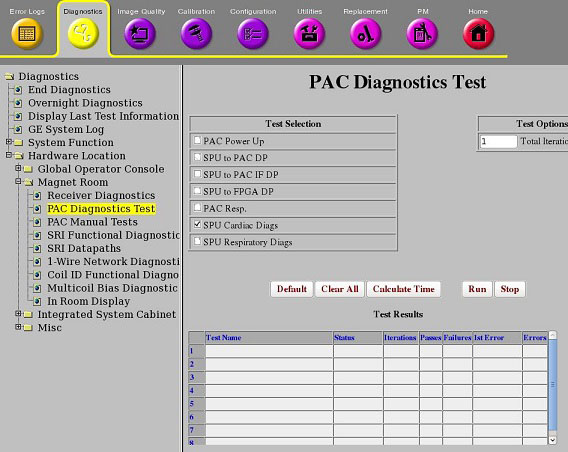

Figure 1. PAC diagnostics

Topic ID: id_SL1914827-1280246

Purpose

This diagnostic verifies that the trigger signals (Cardiac trigger), which are launched from SPU in ICE, could be correctly captured by the sequencer module in ICE.

Topic ID: id_SL1914828-1280246

Components tested

SPU

Topic ID: id_SL1914831-1280246

Requirements

None

Topic ID: id_SL1914834-1280246

Test sequence

Click Calculate Time to get an estimate of the time it will take to run the selected diagnostics.
Click Run to initiate the test.

Note: Do not change the Test Options settings from the default settings unless instructed to do so by a GE Healthcare engineer. There are very few circumstances when these settings need to be changed.

Topic ID: id_SL1914835-1280246

Results

Diagnostic results display a status of Pass or Fail. If you receive a Fail status, click GE System Log to view the error message. The system log records errors with the date, time, the process tested, and a detailed error message.
