Configuring for systems running DV29.1 and later

Procedure

Set the universal phantom pad on the table and align the crosshairs at 1080 mm away from home.
Put the sphere on the pad with the strap (in the groove) in the orientation shown below, making sure the laser lights are cross-centered on the sphere.

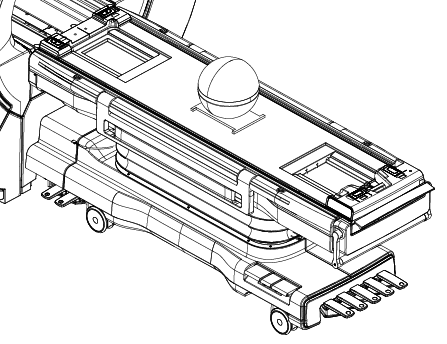

Figure 1. Sphere phantom position
Set up and align the LVShim phantom. Align the phantom so that:
1. The phantom's strap is parallel to the table surface.
2. The phantom is centered left to right with respect to the cradle top.
Landmark on the phantom pad crosshairs.

Note: The landmarking tolerances of the HOShim tool: I/S: ± 3 mm, A/P: ± 30 mm, R/L: ± 5 mm. Make sure the placement is accurate for landmarking. The HOShim tool will verify the placement of the phantom.
Press the Advance to Scan button.
