Removing the host computer - Dell T5820

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	30 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Screwdriver	1	-	-
Disk Management Tool	1	-	-
ESD Strap	1	-	-

Procedure

If installed, disconnect the optional UPS.
For added protection, disconnect the twist-n-lock main power cable from the rear of the console.
Remove the two screws that secure the left side panel of the GOC.

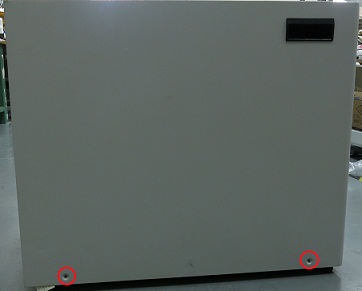

Figure 1. GOC left side panel

Note: The side panel has a short ground lead connecting it to the main chassis. When removing the side panel, do not strain this ground lead.
Disconnect the short ground lead that connects the side panel to the GOC main chassis at the center of the lead.

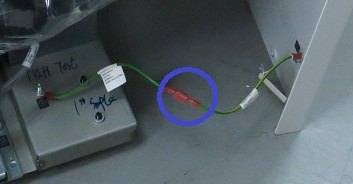

Figure 2. Left side panel ground lead
Remove the left side panel and put it in a safe place.

Make sure all the cables are properly labeled. If not, note their locations for reattachment.

Figure 3. Dell T5820 cable configuration

Table 1. Dell T5820 cable configuration
Item	Run #	Description
1	NA	Line In/Out cable to GOCAA J12/14
2	NA	Site network Ethernet cable
3	NA	Mouse USB cable
4	E3048	Keyboard USB extender cable to keyboard USB cable
5	E3037	ICE USB extender cable
6	NA	USB-RS422 Converter USB cable to USB-RS422 Converter
7	NA	IRDC USB cable to IRDC J1
8	NA	NA
9	NA	NA
10	NA	IRDC mini DP cable to IRDC J2
11	E3046	Host LCD Monitor mini DP cable to Host LCD Monitor
12	E3011	ETH1 (right port) cable to PGR J2
13	NA	Power cable

Remove all the cables connected to the computer.
Remove the strap(s) from the computer.
Remove the host computer from the GOC.
Loosen or remove the brackets if necessary.
When replacing the host computer or hard drives, do a disk wipe on all applicable hard drives. For more information, refer to the latest revision of the Disk Management Tool Service Manual (5500610-1EN) available from the online documentation library.
