Probe/SV tuning (echo peak location calibration)

About this task

This material describes two separate hydrogen ONLY spectroscopy (Probe/SV) procedures:
  • Echo Peak Location calibration (automated Probe Tuning script)
  • Probe signal-to-noise ratio (SNR) performance test

Procedure

  1. Note: The Probe-S tuning procedure requires the site to have purchased catalog M3333WH. The following procedure does not run if the Probe-P option was purchased.
    If there is an exam running, end the current exam (unless the exam was started with the “geservice” patient ID).
  2. (For flat (GEM) table) Insert the curved adapter panel into the table.

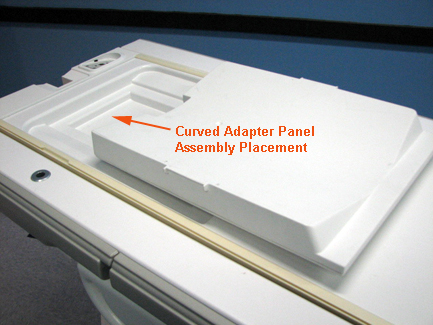

    Figure 1. Install Curved Adapter Panel for Flat Table
