Laser Light Alignment

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable45 minutesNot Applicable

Procedure

Laser Light Alignment for Wide Open BRM/CRM Enclosures:

Follow the directions in Figure 1.

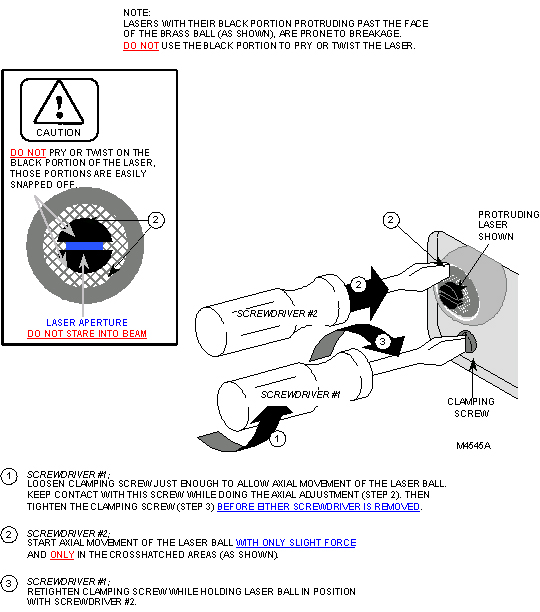

Figure 1. LASER ALIGNMENT LIGHT ADJUSTMENT

Finalization

Perform DQA Tool II.
