8-Channel Body Array Anterior Handle Replacement

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
#2 Flat head screwdriver	1	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
FMI Kit Anterior handle, Handle cover end, Handle cover Middle, (2) M4 X 10mm NY, PNHD screws	1	-	2418437	-

Table 4. Required conditions
Condition	Reference	Effectivity
Broken Anterior Handle.	-	-

The Anterior coil’s handle can break after repeated use. The kit 2418437 includes all components required to replace the Anterior Handle.

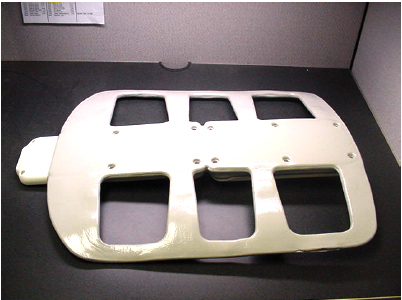

Place the anterior section of the coil foam side up on the work area. See Figure 1.

Figure 1. Place The Anterior Section Of The Coil Foam Side Up

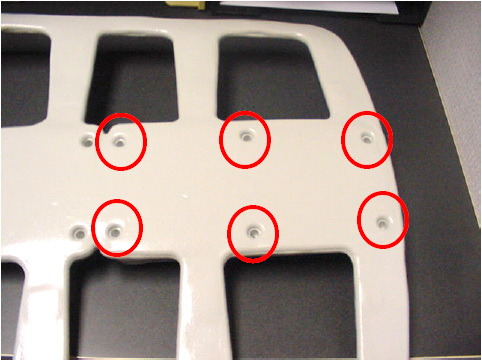

Locate and remove the 6 screws holding the smaller anterior cover in place. See Figure 2.

Note:
Make sure that you do not damage the foam while performing this step.

Figure 2. Remove The 6 Screws Holding The Smaller Anterior Cover

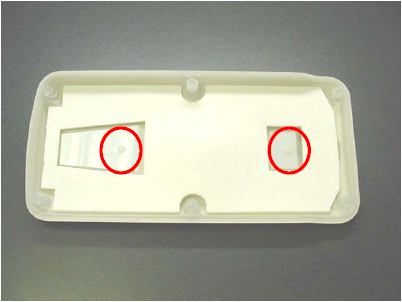

Locate and remove the 2 screws holding the ends of the handle on the inside of the cover. See Figure 3.

Figure 3. Locate And Remove The 2 Screws Holding The Ends Of The Handle

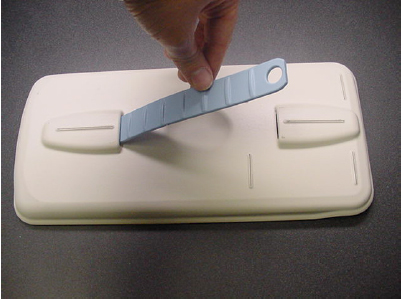

Lift the covers to expose the ends of the handle. See Figure 4.

Figure 4. Lift The Covers To Expose The Ends Of The Handle
Lift the ends of the handle off of the posts and pull the handle out of the slots in the cover.

Note:

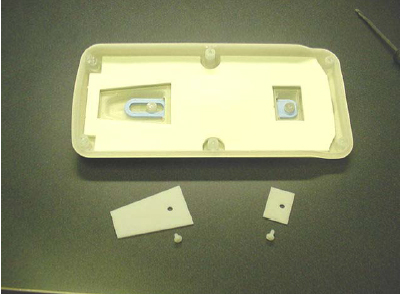

It may be necessary to pry the one end of the handle off of its post. See Figure 5.

Figure 5. Lift The Ends Of The Handle Off Of The Posts And Pull The Handle Out
Place the ends of the new handle in the slots of the cover, making sure it is orientated as shown.
Place the covers over the ends of the handle and secure them in place with their screws.
Place the cover back on the anterior section of the coil and secure it in place by retightening the 6 screws.
