Magnet Enclosure

The Dock Motor Speed Procedure is required as part of set-up and calibration. Procedures for opening magnet enclosure covers and adjusting patient dock hardware (Dock Centering and Dock Hardware Adjustments) are provided in case related Dock problems arise.

Description - Procedures for opening magnet enclosure covers and adjusting patient dock hardware.

Open Enclosure (MG2):

The magnet open enclosure consists of 18 panels all removable, plus the front and rear end bells (Figure 1 and Figure 2).

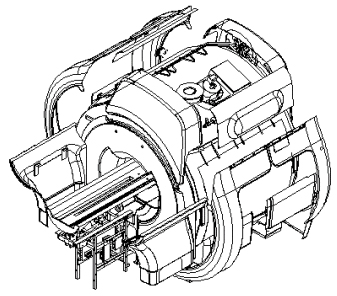

Figure 1. ACCESS TO MAGNET ENCLOSURE FRONT VIEW

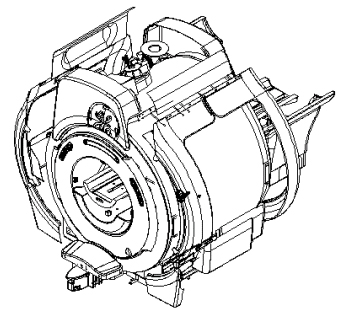

Figure 2. ACCESS TO MAGNET ENCLOSURE REAR VIEW
Note:

All enclosure component seams and gaps visible to the operator and patient shall be less than 0.25 inches (6.35 mm). Exceptions may be made in areas where esthetic visual enhancement of the component gap is required by industrial design.

The gap at the seam between the enclosure and RF coil shall not exceed 0.125 inches (3.175 mm).

Gap uniformity along any continuous seam shall be + - 0.0625 inch (1.59mm)
