CAN Link Help Pages

Note:

The Terminator (an impedance matching connector) must be plugged into Cabinet Monitor which is the last node in the CAN chain.

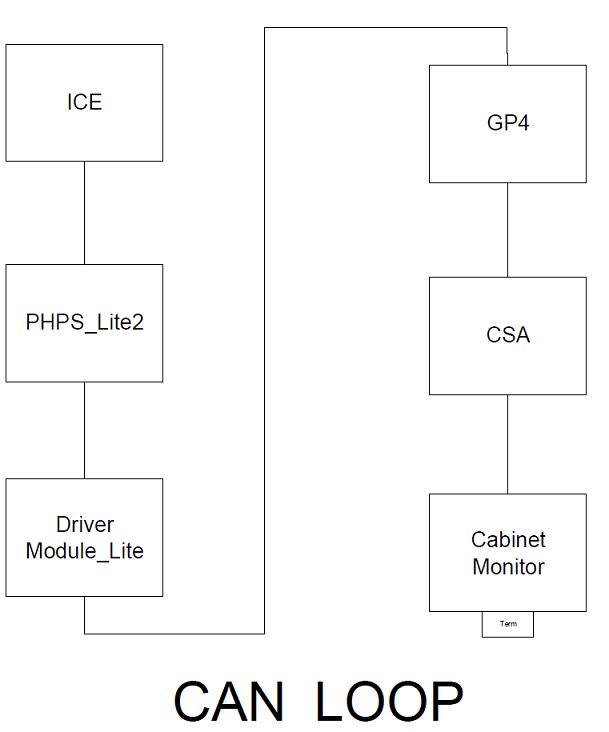

Figure 1. CAN Link
Note: If site has LLD shim supply, the CAN terminator is moved from the PHPS connection Jx to the shim supply J4 and cable is routed between PHPS Jx to Shim Supply J5.
