Table top height adjustment

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	10 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Non-ferrous standard head screwdriver	1	-	-

About this task

Overview

This procedure provides instructions on how to adjust the height of the table top.

Procedure

Dock the patient table.
Use the UP foot pedal to raise the patient table to full up position, and move the cradle completely into the magnet bore to expose the table top height adjustment screw.

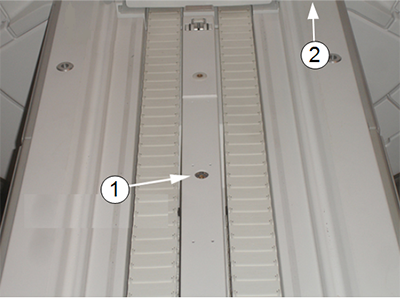

Figure 1. Table top height adjustment screw location

1 Table top height adjustment screw
2 Front of table
Use a standard head screw driver to remove the cover plug.
Adjust the screw to set the table top height equal to the bridge height.

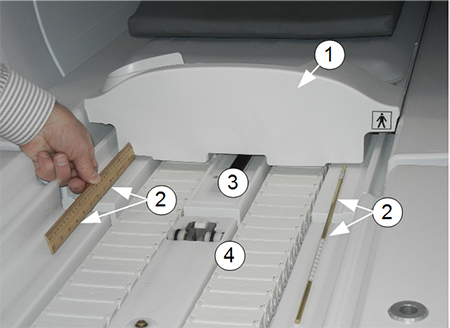

Figure 2. Rolling surface on bridge and table

Item Description
1 Cradle
2 Rolling surface (path) on left and right sides of bridge and table top. Straight edges are used to show the paths.
3 Bridge
4 Table
Replace the cover plug.

Finalization

Dock the table.
Make sure that the cradle release functions properly.
Make sure that the LPCA connects to the cradle and that the cradle can move in and out of the bore.
