TR Dynamic Disable Calibration

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable3 minutesNot Applicable
Table 2. Required conditions
ConditionReferenceEffectivity

All cables and body coil connected

--

About this task

This calibration should be run on:

  • System installation.

  • T/R DD Board replacement.

  • Body Coil replacement.

  • Body Hybrid replacement.

  • Replacement of cabling between any of the above.

Procedure

  1. From the Common Service Desktop, select Calibration > T/R Dynamic Disable Calibration > Run the calibration procedure.

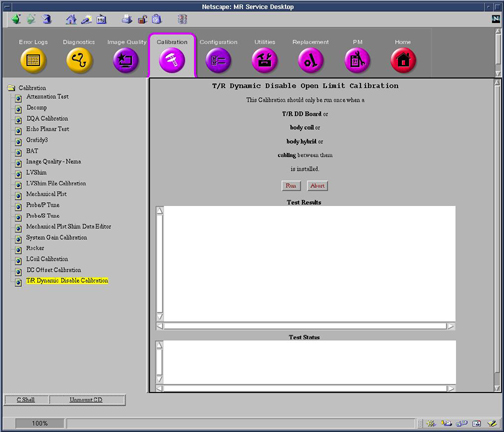

    Figure 1. T/R Dynamic Disable Open Limit Calibration

    The calibration will complete with results given in the Test Results text area.

  2. Perform a TPS Reset for calibration changes to take effect.

Finalization

No finalization steps.
