System Gain Calibration

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not ApplicableHead and Body = 20 mins; Body = 10 mins; Head = 10 mins minutesHead and Body = 2 mins; Body = 2 mins; Head = 2 mins minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Head Sphere with Loader for 1.5T1-

2125244

-
Head Loader Positioner1-

5110241

-
Body Sphere1-

46-265635G6

-
Body Loader1-

2135652-2

-
Table 3. Safety
Table 4. Required conditions
ConditionReferenceEffectivity

No image artifacts, verified by reviewing the images after scan is complete.

--

About this task

The System Gain calibration is performed to determine the standard HEAD (transmit/receive coil) and BODY recon scale factors that will achieve a known level of image intensity when using the standard HEAD coil or BODY coil respectively with a known phantom solution and protocol. The desire is that when the same solution or tissue is scanned in either the standard HEAD or BODY coils with the same protocol, those tissues will have approximately the same image intensity level on a given system and between systems of like type. This calibration accounts for differences in standard HEAD and BODY receive coil sensitivity, preamp gains, cable loss, receiver gain and other factors. The calibration must be done on standard HEAD AND BODY at least once to calibrate those paths. The procedure/tool can calibrate BOTH standard HEAD and BODY together OR just HEAD alone OR just BODY alone.

System Gain Calibration consists of the following:

Preliminary Setup

Procedure

  1. Position SNR Sphere in the head loader as shown in Figure 1. Fasten the strap to the top of the head loader to secure the SNR Sphere inside the loader. Position the head loader on top of the Head TLT loader holder within the head coil so the loader is centered and the loader axial mark is at the center of the head coil window. See Figure 2.
    Figure 1. Position SNR Sphere in Head Loader

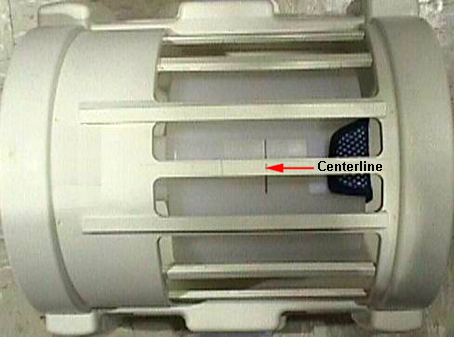

    Figure 2. Landmarking Head SNR Sphere
    Note:

    The distance between head loader landmark and center-mark on body loader is 1135mm.

  2. Landmark on the head coil. As the calibration runs, the table will move to the body coil scan by itself.
    Figure 3. The distance between head loader landmark and center-mark
  3. Start the System Gain Calibration Tool.

    • Starting restricted service tools available to GE Field Service:

      1. Ensure that a service key is installed.

      2. Select Calibration Wizard from the calibration menu and select Click here to start this tool to launch the wizard.

      3. Select System Gain Calibration from the menu and review and verify the prerequisites are met.

      4. Select Click here to start this tool to start the procedure.

        Figure 4. Starting Sys Gain Cal from ICW

      If you are unable to start the Restricted Service tools, use the non-proprietary method described in the next bullet.

    • Starting non-proprietary service tools:

      1. From the Common Service Desktop, select Calibration.

      2. Select System Gain Calibration from the calibration menu, and select Click here to start this tool to start the procedure.

        Figure 5. Starting System Gain

Head and Body Calibration

Procedure

  1. Start the System Gain Calibration Tool as shown in Figure 5.
  2. Select both head and body, type 3Enter. See Figure 6.
    Figure 6. Starting Head and Body Calibration

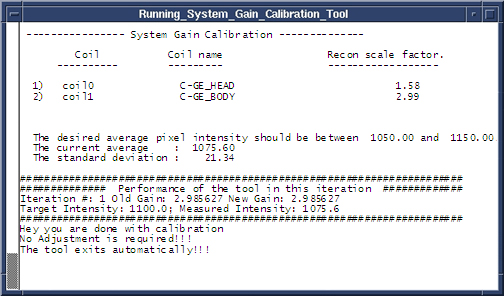

  3. When testing is complete for the Body Mode, you will be asked “Do you want to save the recon scale factor”. Press the Enter key since “y” is the default. See Figure 7.
    Figure 7. Saving Recon Scale Factors
  4. When testing is complete for Head Mode, you will be asked “Do you want to save the recon scale factor”. Press the Enter key since “y” is the default.
  5. Calibration is complete.
  6. Select option 4 to Quit, then press Enter to exit.

Body Calibration

About this task

Note:

The system is dependent on landmarking the head coil, even for body mode only scans.

Procedure

  1. Type 2 and press Enter to select Body Mode, and the calibration begins. (See Figure 6.)
  2. When the test is complete, the calibration results display on the screen. If adjustments are required, the system asks, “Do you want to save the BODY recon scale factor”. Type “Y” and press Enter to save the calibration file. (See Figure 7.)
  3. Type 4 and press Enter to exit the tool. The calibration is complete.

Head Calibration

Procedure

  1. Type 1 and press Enter to select Head Mode only calibration, and the calibration begins. (See Figure 6.)
  2. When the test is complete, the calibration results display on the screen. If adjustments are required, the system asks, “Do you want to save the HEAD recon scale factor”. Type “Y” and press Enter to save the calibration file. (See Figure 7.)
  3. Type 4 and press Enter to exit the tool. The calibration is complete.

Finalization

Procedure

  1. Remove phantoms and Service Tools used during the calibration.
  2. Remove all service tools from the patient table used during the calibration.
