SC Cover Removal

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable5 minutesNot Applicable

About this task

This procedure describes all of SC cover removal. Refer to the related cover removal only according to the replacement procedure.

L Upper Cover: L Upper Cover

R Upper Cover: R Upper Cover

Lower Cover: Lower Cover

Rear Cover (Magnet Room Side): Rear Cover (Magnet Room Side)

Water Manifold Access Cover: Water Manifold Access Cover

L Upper Cover

Procedure

  1. Raise the handlebar on L Upper Cover.
  2. Unlock 4 fasteners with the coin.
  3. Remove L Upper Cover. Refer to Figure 1

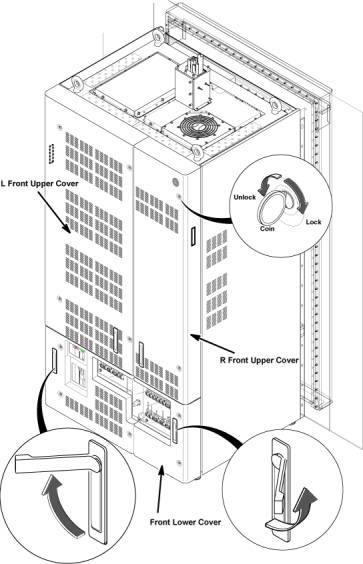

    Figure 1. SC Cover Removal

R Upper Cover

Procedure

  1. Remove L Upper Cover.
  2. Raise the handlebar on R Upper Cover.
  3. Unlock 2 fasteners with the coin.
  4. Remove R Upper Cover. Refer to Figure 1

Lower Cover

Procedure

  1. Raise the two handlebars on Lower Cover.
  2. Unlock 5 fasteners with the coin.
  3. Remove Lower Cover. Refer to Figure 1

Rear Cover (Magnet Room Side)

Procedure

Remove rear cover by removing 6 screws.

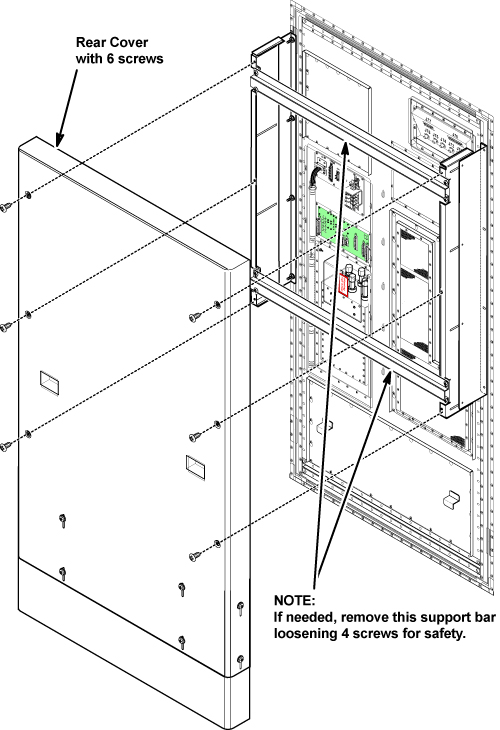

Figure 2. Rear Cover (Magnet Room Side)

Water Manifold Access Cover

Procedure

  1. Remove L Upper Cover and Lower Cover.
  2. Remove Water Manifold Access Cover by removing 2 screws. Refer to Figure 3

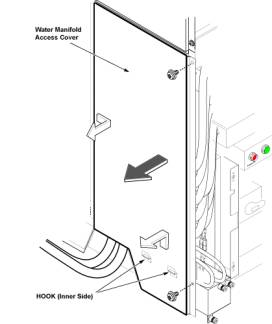

    Figure 3. Water Manifold Access Cover

Finalization

Finalization

No finalization steps.
