Probe-P Calibration and SNR Tests

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
MRS Phantom without the loader	1	-	2152220	-

Table 3. Required conditions
Condition	Reference	Effectivity
Fully operational MR system with all performance specifications met.	-	-
Magnet is shimmed and acceptance specifications have been met.	-	-
Grafidy 3 has been performed and all acceptance specifications have been met.	-	-

Overview

About this task

This material applies to the system with probe-p option and describes hydrogen ONLY spectroscopy (Probe/SV) procedures:

Echo Peak Location Calibration (automated Probe Tuning script) for BRM ONLY
Probe SNR performance test

The Tuning procedure determines the values of control variables (CVs) that are necessary for Probe/SV scanning. Each Tuning scan will result in 18 coordinate values (three sets of six). Within each set of six, the first four values are described as A, C, B, and D. The 5th is E or - Verification, and the 6th is F or + Verification. Additional calculations (using the first four values of each set) are performed, and the resulting values will be automatically entered into a calibration file producing site specific Control Variables. The SNR procedure will be performed after the Tuning procedure.

Note:
Software will not correct specific sites effected with tuning anomalies. Sites with APS failures due to Water Suppression during SNR should use the appropriate type-in PSD (Probe-p2). If necessary, call the OLC for assistance. Depending on the failure, a PQR may be required.

Probe-P Tuning Procedure (Echo Peak Location Calibration)

Procedure

Position the phantom on the head support in the head coil with the temperature strip visible. Do not use the tuning ring or head loader with the MRS phantom. Use foam padding as necessary to center the phantom in the head coil. Phantom-centering (up/down/left/right/in/out) within 5mm of ISOcenter in all directions is important. See Figure 1. Run any head localizer to ensure the phantom is properly centered before beginning the Probe tuning procedure. Landmark on DQA-Landmark.

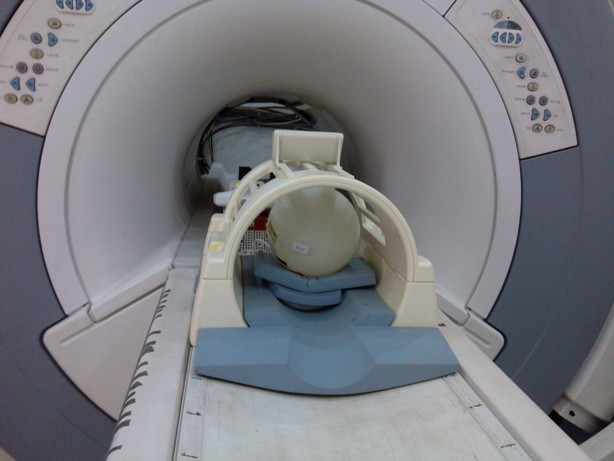

Figure 1. Position of the Phantom
Follow the steps below for Probe/P Tuning.

Do not use the geservice protocol probepcal. This is the alternate proprietary procedure available for GE use, and to sites with a valid Advanced Service Package Limited License.
Start the Probe/P Tune Tool.
- Restricted Service tools available to GE Field Service. Make sure your service key is installed. Select Calibration Wizard from the calibration menu and select Click here to start this tool. Once the Calibration Wizard starts, select Probe/P Tune from the menu, review and okay the pre & post-dependencies, and select Click here to start this tool to start the procedure. If you are unable to start the Restricted Service tools, use the non-proprietary method described in the next bullet.
- Starting non-proprietary service tools: From the Common Service Desktop, select Calibration, Probe/P Tune from the calibration menu, and select Click here to start this tool to start the procedure.
Refer to Data Sheet for the Tuning Data Sheet.
The Probe /P Tuning Window pops up, with a comment reminding the user to landmark on the table as geservice. Hit [Enter] to acknowledge, and the calibration will begin as shown below:

                  Probe-P Cal Started


                  xshim=#        yshim=#       zshim=#


                  APS:   R1=##     R2=##     TG=###     CF=########


                  The tuning process will proceed automatically for each axis:


                  delta#_val: #.##


                  # AXIS Calibration completed Successfully


                  A message will appear after completion of the 3 axis:


                  Probe/P Tuning completed successfully.


                  Results are stored in the   /usr/g/caldir/probes_cal.log


                  If Probe-P cal does not complete successfully: rescan, if still failing re-run grafidy.


                  Press [Enter] to quit
To view the complete results (which do not contain APS information):
1. Select C Shell....
2. Type: more /usr/g/caldir/probep_cal.log
The specification criteria (absolute value) are:
- Single delta parameter, I < .8 I
- Sum of all delta parameters, I < 1.0 I

Probe-P SNR Procedure

Procedure

Note:
The MRS Phantom (without the loader) must be used for the SNR procedure. The greenest value of temperature strip must be entered as a Control Variable (tempC).

Set up the Service scan prescription by following the instructions below. This is the alternate proprietary procedure available for GE use, and to sites with a valid Advanced Service Package Limited License. For Non-Service protocol refer to Manual Entry Probe/SV SNR Protocols.

Note:
The MRS Phantom must be used for all SNR procedures. Position the MRS phantom on the head support in the head coil with the temperature strip visible. Do not use the tuning ring or head loader. Use foam padding as necessary to center the phantom in head coil. Phantom-centering (up/down/left/right/in/out) within 5mm of ISOcenter in all directions is important. Run any head localizer to ensure that the phantom is properly centered before beginning the PROBE SNR procedure.

This is the alternate proprietary procedure available for GE use, and to sites with a valid Advanced Service Package Limited License.
If whole mode, select Whole, then OK, or

If zoom mode, select Zoom, then OK.
Save Series.
Select Research Operations using the mouse, then right-click.

Display CVs. Highlight the CV Name and enter the following:


CV Name: `opfov`Enter, CV Value: `240`Enter
CV Name: `opte`Enter, CV Value: `35000`Enter
CV Name: `optr`Enter, CV Value: `2000000`Enter
CV Name: `tempC`Enter, CV Value: ##Enter (greenest portion of temperature strip)
CV Name: `deltax`Enter, CV Value: `verify per tuning results`Enter
CV Name: `deltay`Enter, CV Value: `verify per tuning results`Enter
CV Name: `deltaz`Enter, CV Value: `verify per tuning results`Enter

Accept.
Research Operations Download.
Scan (the system will Auto Prescan then Scan).
Select Message Window, which is located in upper left-hand corner of the scan desktop. Record R1, R2, TG, AX, (if present, record FWHM, WS Angle, WS%) on the Data Sheets. Close the window.
SNR is not annotated on the auto viewer; you must access the image from the Browser on the Display (Advantage Windows) Desktop. On this desktop, click on Browser, Sort, Sort examinations by date. Once you have done this, the most current exams will be displayed in the upper window. Select the most current Image from the most current Series from the lower window, and click on Viewer. Select Format, then click on the single box (in the upper left corner).
Record the displayed results on the Data Sheets for Probe-P SNR.
Retain a hard copy of the Probe SNR image for reference. This can be used to make a comparison of the Cr SNR from the most recent Probe-S and Probe-P scans with the Cr SNR previous/future scans.

Note:
It is imperative that a minimum of three scans be performed (back-to-back) to get an estimated average Probe-P SNR.
Repeat Step 7 - Step 11 three times, to get an average Probe-P SNR.
Probe-P SNR specification is:
- (For 1.5T) 60.00 minimum

Help

About this task

This section contains Illustrations of Probe SNR Spectra, both incorrectly tuned and correctly tuned to familiarize the user with what a good spectrum looks like. During tuning or SNR troubleshooting, it may be necessary for a site to back up the original echoloc.dat file. This backup process requires renaming the file, otherwise, it will be overwritten during the tuning calibration. Additional information can be obtained concerning the cause of an AWS (Auto-Water Suppression) failure by logging the messages generated during the Probe APS. A site may be required to send Probe SNR raw data to an expert for review. This section explains the P raw file location process and how to transfer it.

Example SNR Spectra

About this task

Errors in the Probe Tuning Calibration Procedure can introduce changes in the appearance of the resulting Probe SNR spectra. This section contains example spectra from a Probe-P SNR protocol using the MRS phantom. Figure 2 shows a correctly-tuned spectra. Pay particular attention to the base (left and right) of the NAA (NA) peak; this is the largest peak located at the center of the spectrum.

Procedure

Refer to Figure 3 and Figure 4 to view spectra with an un-calibrated tuning parameter (a delta was offset + or - from the correct value by 0.5 units).

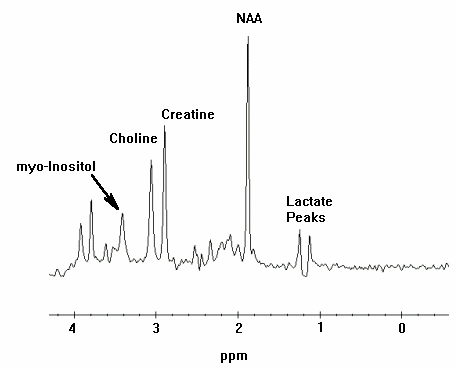

Figure 2. Correctly-Tuned Probe SNR Spectra

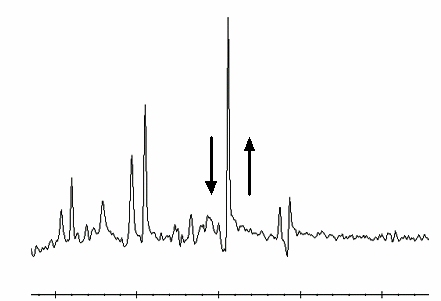

Figure 3. Incorrectly-Tuned Probe SNR Spectra

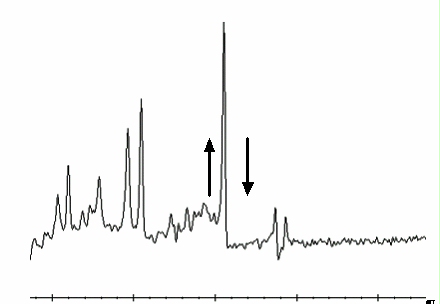

Figure 4. Incorrectly-Tuned Probe SNR Spectra
To perform Probe Tuning File and Backup, follow these steps:
1. At the MR Service Desktop, click on C-Shell....
2. At the prompt, enter the following:

  cd /usr/g/caldir Enter

  mv echoloc.dat echoloc.bak1 Enter
Close the C Shell...

Note:
The echoloc.dat file does not exist for initial software loads.

The actual file that contains the Probe Calibration values is in the caldir directory as probepfix.dat. The unlabeled values are deltax, deltay, and deltaz.

For the TwinSpeed, the file extensions .WHOLE and .ZOOM should be used and maintained when moving files.

Note:
Additional information can be obtained concerning the cause of an AWS (Auto-Water Suppression) failure by logging the messages generated during the Probe APS.

Directory Creation

Procedure

On the MR Service Desktop, click on C Shell....
Create a directory to hold the log file by entering the following:

cd /usr/g Enter

mkdir probe_data Enter

cd probe_data Enter.
Log in to the MGD AGP and direct the output to a file and to the screen. Use the grave symbol (`) and the pipe symbol (|) on the keyboard where indicated below. Local is the lowercase “l” key.
rlogin agp | tee agp_log Enter.
Log in to local (l) or remote (r) vxWorks console Enter.
Log in using the user name agp , then press Enter. When prompted, enter the password agpservice and press Enter.

At this point logging is running. DO NOT type anything in the AGP window. Watch the AGP messages appear on the screen; everything will be logged into the file entered after the tee command (tee agp_log). This file will be overwritten each time.
Select the Rx Manager icon.
Run Auto Prescan (APS).
Select the Service Desktop Manager icon and use the scroll bar to review the log.
When done, type logout in the AGP window. This will disconnect the AGP from the C Shell. A message will appear confirming logoutConnection closed.
To view the log file created, verify that the current directory is /usr/g/probe_data.
Type: more agp_log and press Enter.
Close the C Shell when you’re done.
The log file can be sent to the OLC, or e-mailed to whomever the site is working with to resolve problems.

Note:
During the troubleshooting process, the site may be required to identify the P raw data files generated when Probe SNR was performed. These files may be helpful in determining a reason for SNR failure.

P Raw Data File Location

About this task

This portion of the procedure should be performed after running a Probe SNR protocol to facilitate P raw file identification.

Procedure

At the Service Desktop Manager, click on C-Shell....
At the prompt enter the following:

cd /usr/g/mrraw Enter

ls -lt P*| head Enter
The most recent P files will be displayed. Record the Probe raw data file (P#####.7). The P file’s size is ~449584.
Close the C Shell when you're done.

Finalization

No finalization steps.
