Multi-Coil Quality Assurance Tool

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable20 minutes per coil minutesN/A minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Coils and Phantoms for all coils to be tested are required.----

About this task

The Multi-Coil Quality Assurance (MCQA) Tool is a new tool that will simplify data acquisition and analysis of the signal-to-noise ratio (SNR) for surface coils. It will aid in detecting dead coil elements, as well as developing improved integrated signal-to-noise ratio (ISNR) specifications for all Multi-coils, independent of scanner instabilities. The tool does not rely on ROI placement as other SNR tools have in the past. Instead, it chooses slice locations based on coil geometry, acquires one Spin Echo Image, and turns off RF to gather a noise image. The noise mean of the 2D-noise-only image is subtracted from the 2D intermediate image.

The summed signal of the [2D intermediate image – noise mean] is calculated, and then this signal is divided by the Standard Deviation of the Noise of all pixels of the noise-only-image, to give the ISNR. See the formulas below.

Figure 1. ISNR Formula

Setup and Starting Multi-Coil QA (MCQA) Tool with Unified Phantom Set

About this task

All RF coil related tests must be run on a system that is well-calibrated and passing all system tests. The system should have passed “Install In Spec” (IIS), especially white pixel, correlated noise, and MCR (Multi-Coil-Receive) tool.

Procedure

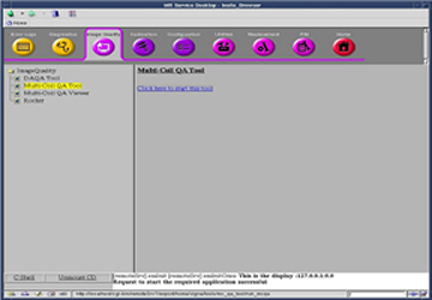

  1. From Common Service Desktop (CSD) go to Service Browser and select [Image Quality], Multi-Coil QA Tool and then Click here to start this tool as shown in Figure 2.
    Figure 2.

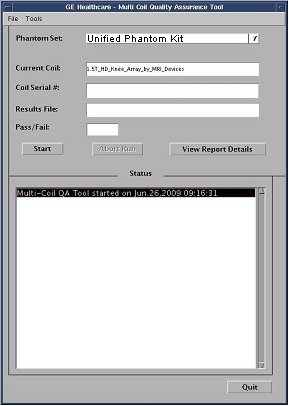

  2. Upon start-up, the coil that is connected to the system gets selected in the Current Coil field as shown in Figure 3.
  3. Check that Unified Phantom Set is selected in Phantom set.
    Figure 3. Current Coil Field

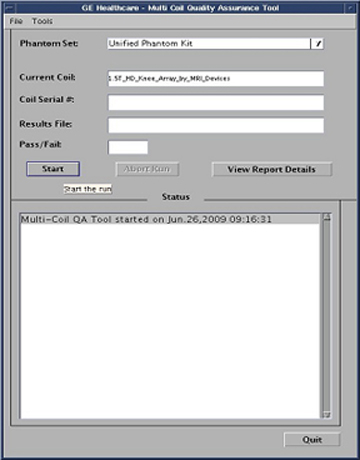

  4. Click on [Start] to begin the automated test as shown in Figure 4. Depending on the number of test locations (complexity of the coil) the test may take from 3 to 20 minutes.
    Figure 4. Begin the Automated Test
  5. A confirmation pop-up displays, asking to continue. Click on [Yes]. See Figure 5.
    Figure 5. Confirmation Pop-Up

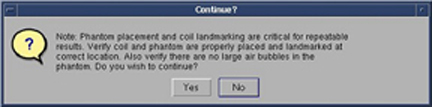

  6. Upon start-up, a message stating, Phantom placement and coil landmarking are critical for repeatable results will appear. If the landmark has been set correctly and there are no air bubbles in the phantom, click [Yes] to continue. See Figure 6.
    Figure 6. Startup Message
    Note:

    The Status window of the MCQA Tool GUI will continuously update to give information on what the tool is doing at any point in time. A time bar (Figure 7) will appear, showing approximate total test time, elapsed time and percent complete. Once the test has completed, the name of the Results file will be listed, along with the Pass/Fail status and the results of the test in the MCQA Tool GUI.

    Figure 7. Status Window

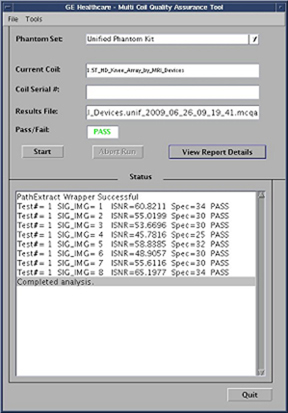

  7. When the test is complete, test results display on the screen (Figure 8). The PASS/FAIL status shows PASS if all coil elements are functioning properly. If any coil elements display FAIL, call the GE Service Representative for coil repair.
    Figure 8. Test Results
  8. The MCQA Tool GUI displays Fail for reasons including, but not limited to:

    • Bad coil element

    • Incorrect phantom used for the test

    • Incorrect positioning/placement of the phantom

  9. Click on [Quit] button to exit MCQA Tool.

Viewing Report Results

Procedure

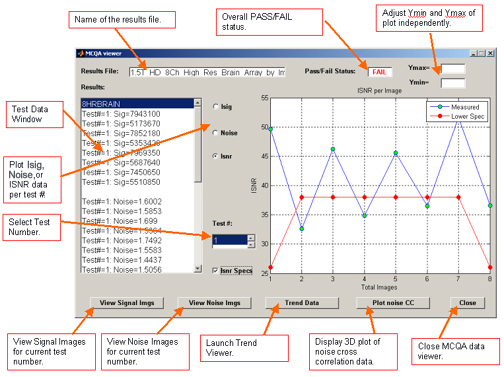

  1. After running the Multi-Coil QA test, select View Report Details to review the results. To review past results, select File, Open Results File and select the desired coil results file. The Results Viewer will open as shown in Figure 9. The Results file name and Pass/Fail Results shown on the tool GUI will also be listed across the top of the viewer.
    Figure 9. Multi-Coil QA Results Viewer
  2. The Results will be displayed in the Results window on the left side of the GUI.
  3. To review the results of a different test for this same coil, select the appropriate Test # from the scroll box at the lower middle portion of the screen.
  4. To graph the data, select one of the following three choices Isig, Noise, or Isnr, and the corresponding results will be displayed in the window to the right. The integrated signal, noise, or integrated SNR values will be listed on the vertical axis, with the images along the horizontal axis.
  5. To graph the Isnr Specification values in addition to the data, select the Isnr Specs check box below the Test # box in the lower middle portion of the screen.
  6. The graph results will automatically scale according to the data values. To manually change the vertical scale, enter Ymax and/or Ymin values into the boxes at the top right of the GUI.
  7. To view all the Signal or Noise Images, select View Signal Imgs or View Noise Imgs respectively, and an image viewer will appear with one image per coil element, ordered left–to-right and top-to-bottom. See Figure 10 for an example.
    Figure 10. Signal and Noise Images
  8. From the MCQA Viewer, select the Plot noise CC to display a 3D plot of the noise cross correlation data for the results being viewed. The data shows the relative cross correlation of noise between receiver channels. Green data is a one-to-one correlation. Red data are correlations above the threshold. See Figure 11 for an example plot.
    Note:

    There are currently no specs for the noise cross correlation data. It may be possible to determine patterns per coils and set specs as more data is collected.

    Figure 11. Signal and Noise Images
  9. Past Multi-Coil QA results are stored on the system, which allow for the ISNR data to be trended over time. On the Multi-Coil QA Results Viewer Window, select the Trend Data button, and the MCQA Trend Viewer will pop up as shown in Figure 12.
    Figure 12. MCQA Trend Viewer

MCQA Trend Viewer

About this task

Every time the MCQA test is completed, a new Results file is generated. These results can be graphically trended within the MCQA Trend Viewer. All the Results Files available for trending are listed in the window to the left of the screen.

Procedure

  1. Select the Test and Image numbers of the data you would like to review from the middle scroll boxes.
  2. Choose the Isig, Noise, or Isnr radio button that corresponds with the desired graph.
  3. The data will be displayed over time (# of tests run). To change the vertical scale, enter new values into the Ymax and/or Ymin boxes at the top of the screen.
  4. Statistics pertaining to the existing data will be given in the box in the lower center section of the GUI.

Finalization

Procedure

  1. Select the Close button to exit out of the MCQA Trend Viewer and Results Viewer.
  2. Click Quit. This exits the MCQA Tool.
  3. Close any Image files still open on the screen.
  4. Remove all coils and phantoms from the system bore.
