Front End Bell Replacement

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
4 minumum - - -
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
12-inch length of 1/2-inch I.D. hose1---
2 hose clamps for 1-inch O.D. hose1---
4-inch-long piece of copper tubing, 1/2-inch O.D.1---
Roll of paper toweling1---
Pair of latex gloves (optional)---
Non-magnetic torpedo level or similar 1---
Epoxy-filled Gradient Coil cart (2134810), cradle (2134810-2), and accessory kit (2134810-4). 1-

2144093

-
Class 1 electric rider lift truck, 4-wheel, rated at 6000 lbs (in case the coil, cart, and cradle must all be lifted together— a necessity in mobiles); with forks a minimum of 56 inches long; with side shifter for easy width adjustment and lateral movement of forks.1-

n/a

-
Non-magnetic tool kit 1-

46-320273G1, G2, G3, or G4

-
Table 3. Required conditions
ConditionReferenceEffectivity

Verify that the Epoxy-filled Gradient Coil accessory kit contains all the parts listed in Kit Contents.

--

Procedure

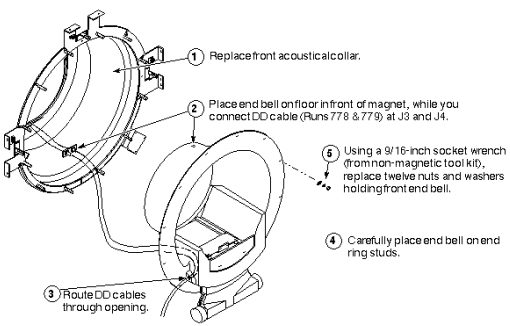

  1. Replace front end bell
    Figure 1. REPLACE FRONT END BELL

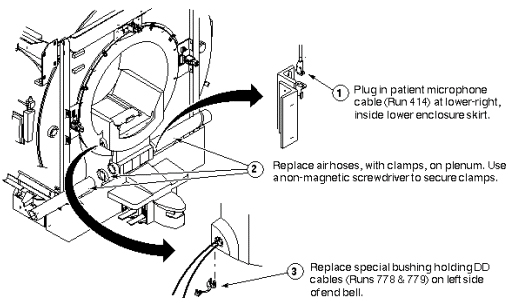

  2. Replace front comfort items
    Figure 2. REPLACE FRONT END BELL

Finalization

No finalization steps.
