• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30699E20GYZ
  • Topic ID: id_13107325 Version: 3.0
  • Date: Aug 29, 2019 1:43:35 AM

Comfort Module (Patient) Blower Air Flow Adjustment

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable5 minutesNot Applicable

Procedure

  1. An adjustment is provided to regulate the airflow for patient comfort. This adjustment flap may be set between ¼ and full open position based on ambient room temperature and the customer’s preference. The full open position provides maximum airflow to the patient. To adjust the airflow loosen the knob and slide the shutter to the desired position.
  2. Tighten the knob to hold the shutter securely in the desired position. See Figure 1 for details.

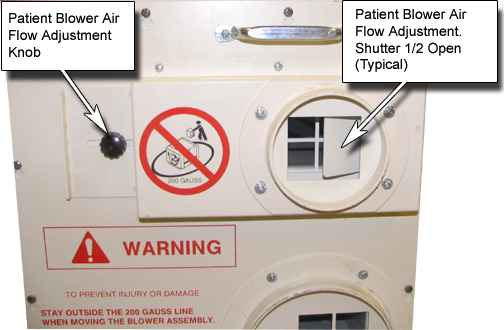

    Figure 1. Patient Blower Adjustment

Finalization

No finalization steps.
