Cable Installation

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2. Safety

DANGER

MAKE SURE ALL POWER TO CABINET IS OFF, LOCKED, & TAGGED BEFORE CONNECTING WIRES.

Notice

Do not cut gradient cables from BRM.

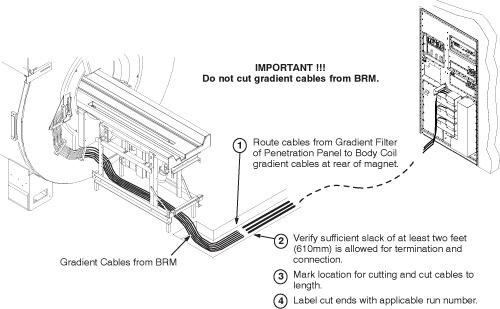

Route Runs M3529, M3530, and M3531 To Rear Pedestal Area

Figure 1. Route Runs M3529, M3530, and M3531 To Rear Pedestal Area

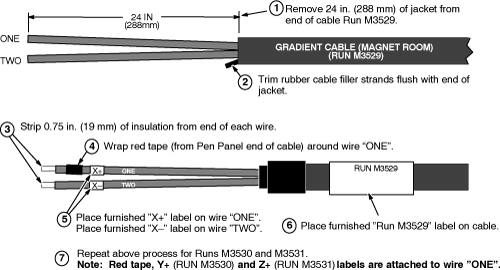

Terminate Runs M3529, M3530, and M3531 For Magnet Room.

Figure 2. Terminate Runs M3529, M3530, and M3531 For Magnet Room

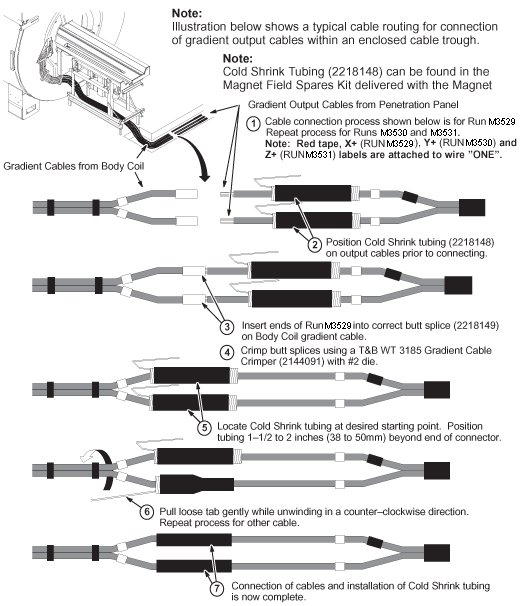

Connection Of Gradient Cables from BRM To Runs M3529, M3530, and M3531

Figure 3. Connection Of Body Coil Gradient Cables To Runs M3529, M3531, and M3531

No finalization steps.
