1.5T HD Vibrant Breast Array Setup for Coil SNR Test

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	15 minutes	-

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
10cm Spherical phantoms	2	-	46-317586G1	-
Phantom positioner, Breast	1	-	5343432	-

Table 3. Required conditions
Condition	Reference	Effectivity
The following coil configuration names must be installed to run this tool: HDBreastServ, HDBreastRtServ, and HDBreastLtServ.	-	-

Follow this process to prepare for the automated SNR test using the 1.5T HD Vibrant Breast Array by GE/USAI (M3087JG) .

Place the coil on the patient table and insert the phantom positioner into the coil as shown in Figure 1.

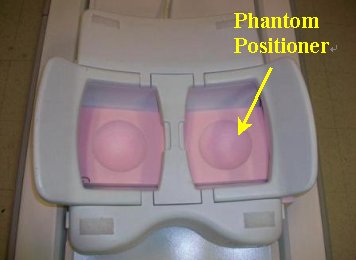

Figure 1. Coil and phantom positioner
The position of the spherical phantoms from the side of the coil is as shown in Figure 2.

Figure 2. spherical phantoms
Place the phantoms on the phantom positioner as shown in the Figure 3.
Connect the coil to respective port of the system LPCA.
Landmark on the center of the bridge between both the chambers (Figure 3) and advance to scan.

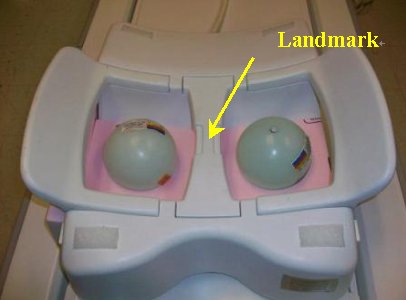

Figure 3. Phantoms and Landmark
Perform the Multi-Coil Quality Assurance Tool.

No finalization steps.
