1.5T HD 3CH Shoulder Coil Setup

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
10 minutes15 minutes0 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Phantom Positioner 1-

2375136-3

-
Table 3. Required conditions
ConditionReferenceEffectivity

The following coil configuration names must be installed to run this tool: US SHOULDER PA

--

Procedure

  1. Position the coil in the cradle, connect the cable as shown in Figure 1.

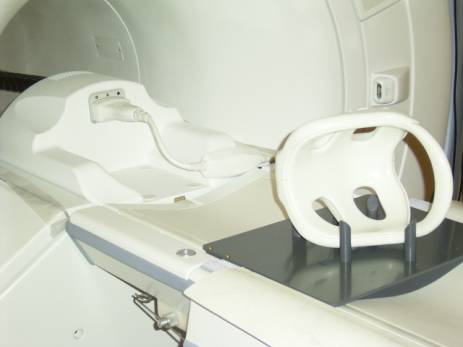

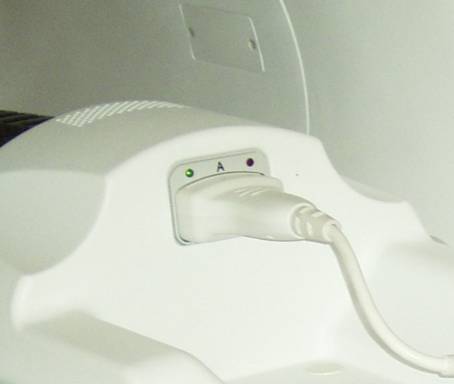

    Figure 1. Connecting the Coil
  2. Place a phantom in the coil as shown in Figure 2.

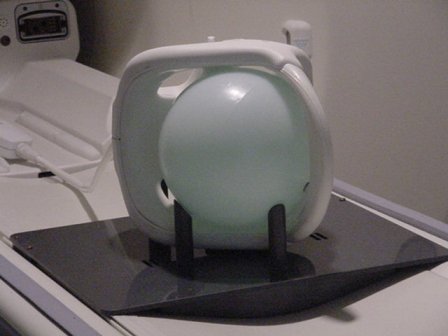

    Figure 2. Positioning Phantom
  3. Landmark on the coil crosshairs as shown in Figure 3.

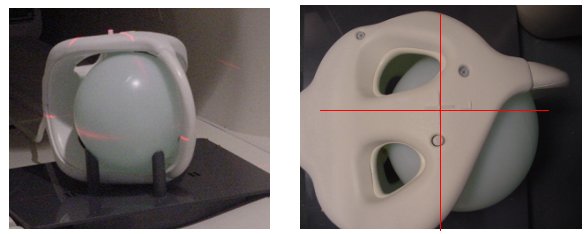

    Figure 3. Landmarking Coil
  4. Perform Multi-Coil Quality Assurance Tool.

Finalization

No finalization steps.
