1.5T Breast Array Installation

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1 -15 minutes -

About this task

Follow this process to install the 1.5T HD Vibrant Bilateral Breast Array by GE/USAI (M3087JG).

Procedure

  1. Go to the Service Desktop and start the Service Desktop Browser if it's not already running.
  2. Follow the steps shown in Figure 1.

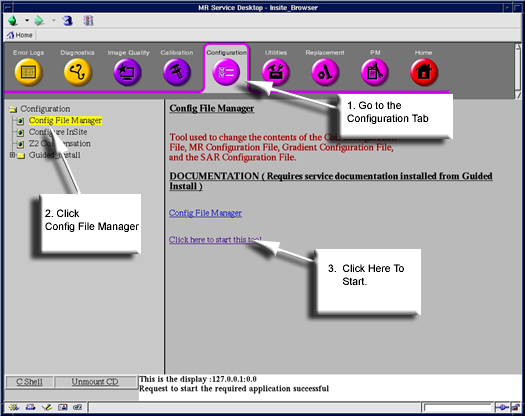

    Figure 1. Starting the Config. File Manager
  3. Click the CoilConfig button on the left. The following screen will appear, see Figure 2.

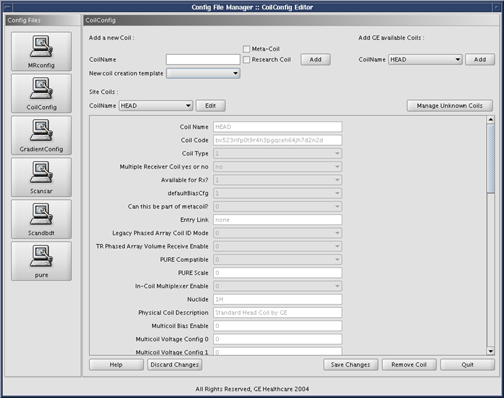

    Figure 2. CoilConfig Screen
  4. For HDx, HDxt, and HDe, add the following coil name(s) to the list of site coils:

    • HDBreast

    • HDBreastRight

    • HDBreastLeft

    • HDBreastServ

    • HDBreastRtServ

    • HDBreastLtServ

  5. Once the coils have been added click the Save Changes button to save changes made.
  6. Restart the system.
  7. Add coil part number into the GIB (Product Locator).

Finalization

No finalization steps.
