General Troubleshooting

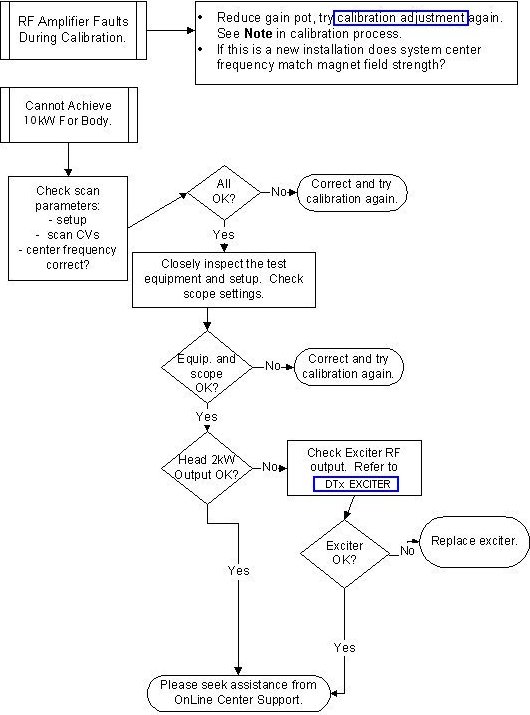

Figure 1. Troubleshooting Flowchart1
Body and Head Maximum Power Setup and CalibrationDTx Exciter

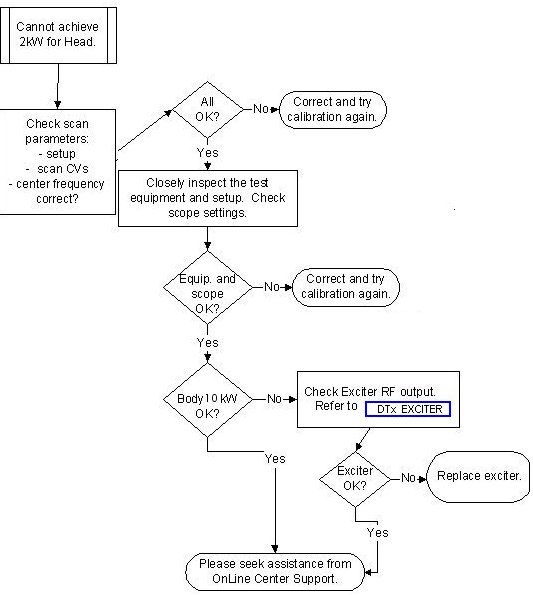

Figure 2. Troubleshooting Flowchart1
DTx Exciter
