Diagnostic Test Theory and Help Information

In proprietary mode diagnostic test theory is available for many test. Help information is also available concerning each of the components inside the System Cabinet.

Accessing Diagnostic Test Theory

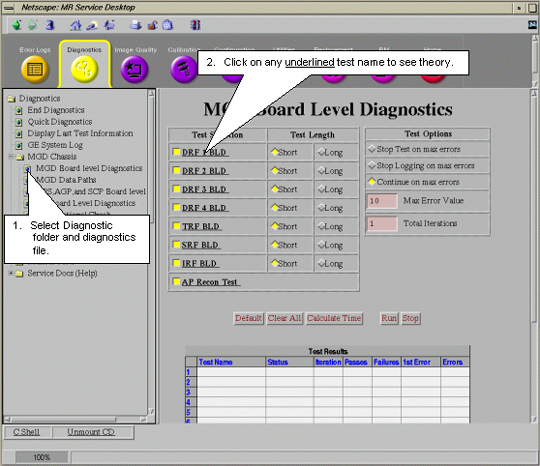

Figure 1. DIAGNOSTIC THEORY INFORMATION

See Figure 2 for the screens that are displayed.

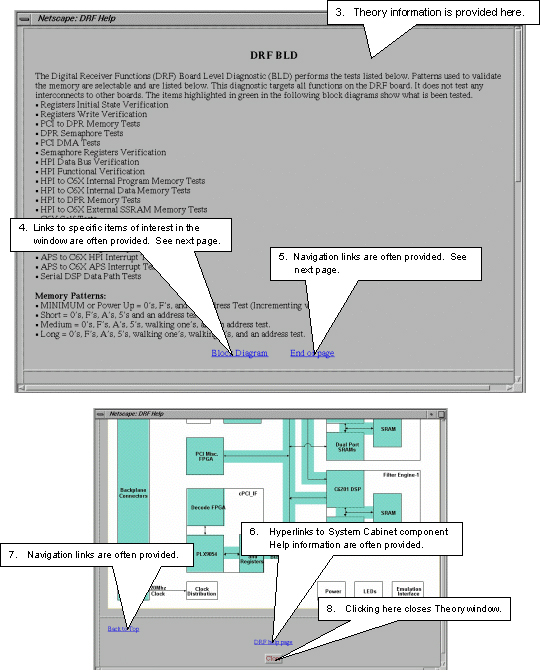

A window like the following that provides test theory is displayed:

Figure 2. THEORY INFORMATION

Accessing Help Information

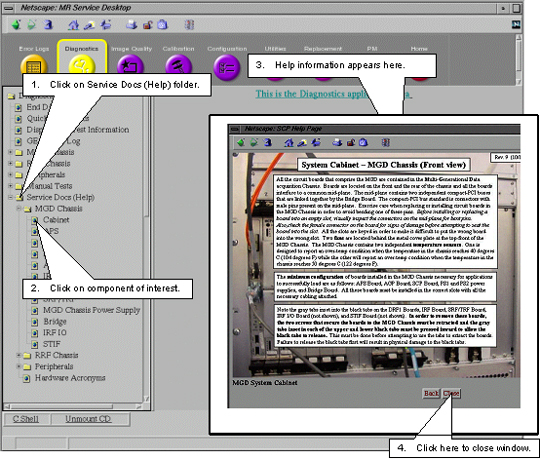

Figure 3. EXAMPLE HELP SCREEN
