General Coils Field Replacement Units

3" Round Coil 1.5T - MCAT# M1085GA/Part# 2127315

ItemPart NumberDescription
121273153 Inch Coil

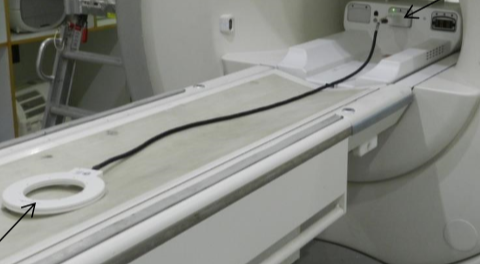

5" Round Coil 1.5T - MCAT# M1085HA/Part# 2127316

ItemPart NumberDescription
121273165 Inch Coil

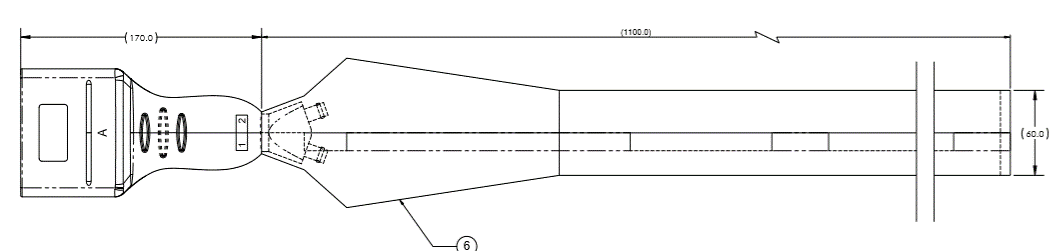

HD Dual Array Adapter - MCAT# M3335MG/Part# 5140889

ItemPart NumberDescription
15140889HD Dual Array Adapter

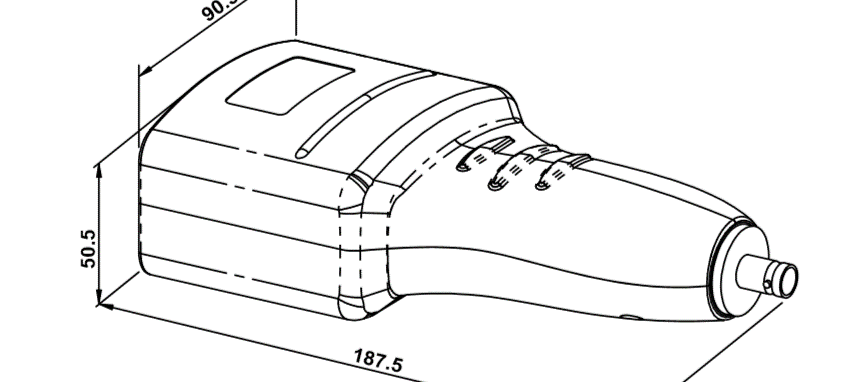

Surface Coil Adaptor Single Ch., 1.5T – HDx - Part# 5140888

ItemPart NumberDescription
15140888Single Channel Adapter

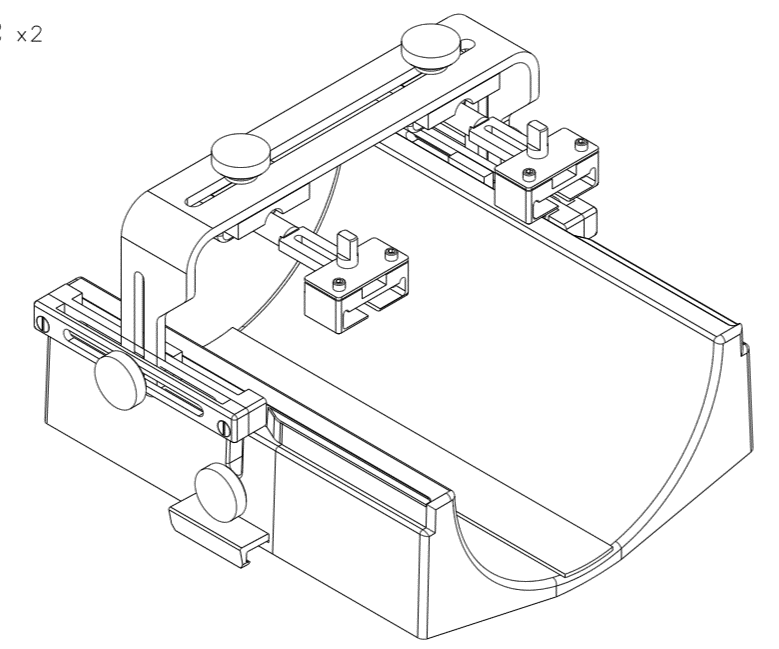

Surface Coil Position Holder - MCAT# M1087EE/Part# 46-258800G1

ItemPart NumberDescription
146–258800G1 Head & Positioner
