Cardiac Coil Field Replacement Units

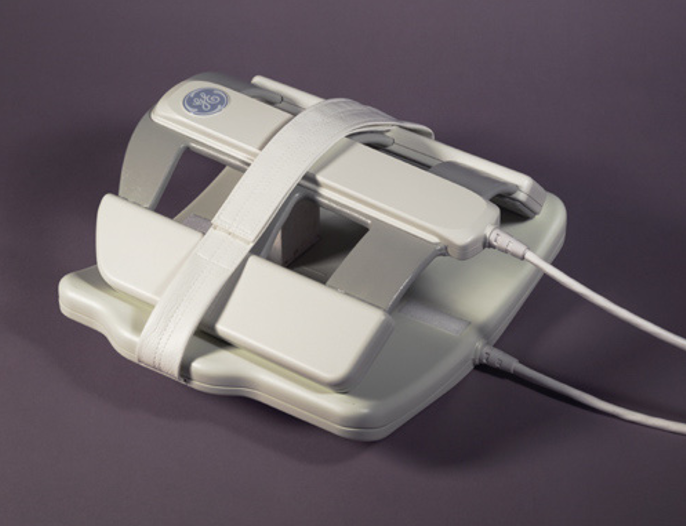

1.5T Signa Cardiac Coil - MCAT# M3335MD/Part# 2415376

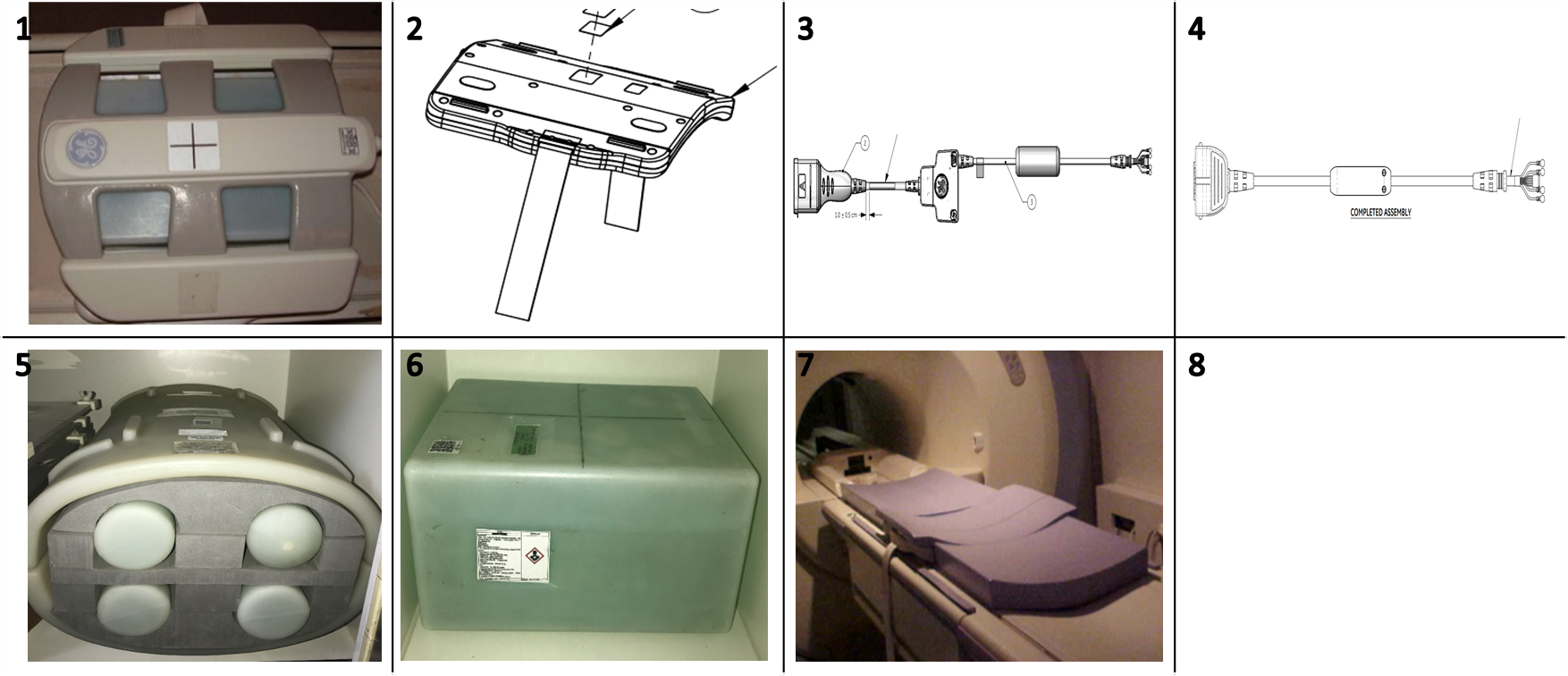

| Item | Part Number | Description |
|---|---|---|
| 1 | 2416896 | 1.5T 8CH Cardiac Anterior Coil |
| 2 | 2416897 | 1.5T 8CH Cardiac Posterior Coil |
| 3 | 5492507 | 1.5T 8CH Cardiac System Cable |
| 4 | 5492508 | 1.5T 8CH Cardiac Posterior Cable |
| 5 | 2304255-3 | 1.5T 8CH Cardiac Legacy Phantom Set |
| 6 | 5343347 | TL Unified Phantom |
| 7 | 2304255-6 | Patient Pad Set |
