1.5T Phantoms

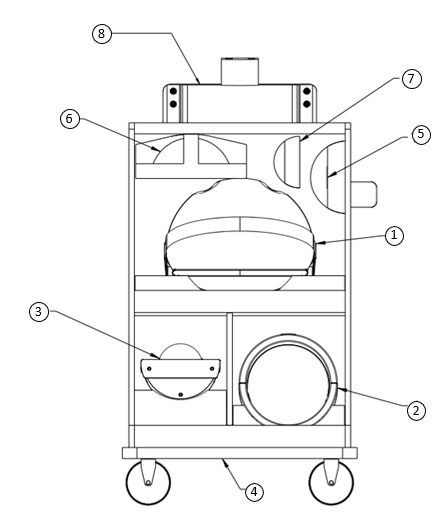

SPT Phantom Kit
| Item | Part Number | Description | Qty | FRU | Lower Assy |
|---|---|---|---|---|---|

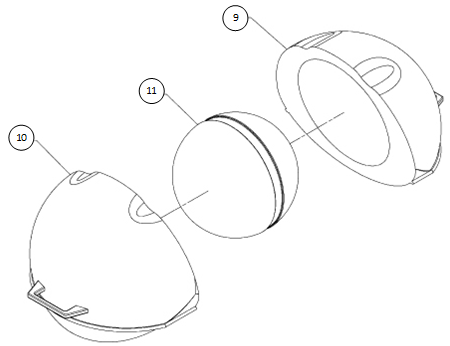

| 1 | - | SPT Phantom W/HANDLES | 1 | No | Item 9 ~ Item11 |
| 2 | - | SPT Short Loader | 1 | No | Item 12 ~ Item14 |
| 3 | 2321556 | DQA III Phantom | 1 | Yes | - |
| 4 | 2134213 | SPT Phantom Cart | 1 | Yes | - |
| 5 | 2170481 | EPI Foam Positioner | 1 | Yes | - |
| 6 | 5110241 | Head Loader Positioner | 1 | Yes | - |
| 7 | 2291292 | EPI Head Positioner | 1 | Yes | - |
| 8 | 2125247-13 | Molded SPT Nesting Plate | 1 | Yes | - |
| 9 | 2306642 | LV Phantom Small Half Assembly | 1 | Yes | - |
| 10 | 2306645 | LV Phantom Big Half Assembly | 1 | Yes | - |
| 11 | 2274476 | LVShim Phantom Inner Sphere | 1 | Yes | - |
| 12 | 2125244 | SPT Short Loader with Sphere Assembly | 1 | Yes | - |
| 13 | 2135650-2 | Short Loader Sphere | 1 | Yes | - |
| 14 | 2135652-2 | Short Loader Cylinder | 1 | Yes | - |
Phantoms
| Item | Part Number | Description |
|---|---|---|
| 1 | 5343347 | TL Unified Phantom |
| 2 | 5342679 | Large Cylindrical Unified Phantom |
| 3 | 5342680 | Small Cylindrical Unified Phantom |
| 4 | 5342681 | Cubical Unified Phantom |
Pads and Straps
| Item | Part Number | Description |
|---|---|---|
| 1 | 2417270 | Body Pad, Breast Coil |
| 2 | 2417269 | Compress Pad, Breast Coil |
| 3 | 2412151 | Footrest Pad, Breast Coil |
| 4 | 2408504 | Armrest Pad, Breast Coil |
| 5 | 2408503 | Chamber Pad, Breast Coil |
| 6 | 2408502 | Headrest Pad, Breast Coil |
| 7 | 2417271 | Trans Pad, Breast Coil |
| 8 | 2418896 | Breast Coil Pad Kit |
| 9 | 5160986-10 | Upper Pad, HD Wrist Array |
| 10 | 5160986-11 | Array Elbow Pad, HD Wrist Array |
| 11 | 5160986-6 | Wrist Pad, HD Wrist Array |
| 12 | 5160986-9 | Palm Pad, HD Wrist Array |
| 13 | 5160986-8 | Finger Pad, HD Wrist Array |
| 14 | 5160986-7 | Base Pad, HD Wrist Array |
| 15 | 2352202 | Restraint Straps, Head Coil |
| 16 | 5327298 | Head Coil Cushion Flat |
| 17 | 5327297 | Cushion Head, Head Coil |
| 18 | 2375136-5 | Patient Comfort Pad |
| 19 | U1-155081 | Positioning Straps, 1.5T Shoulder |
| 20 | 2413827 | Spacer Pad, 1.5T Shoulder |
| 21 | 2377426-6 | 8CH CTL Coil Pad |
| 22 | 2304255-6 | Cardiac Pad, 8CH Cardiac Array |
| 23 | U1-155164 | Patient Comfort Pad, 1.5T 8CH Cardiac |
| 24 | U1-155165 | Patient Headrest Pad, 1.5T 8CH Cardiac |
| 25 | U1-155198 | Velcro Straps Set of 2, 1.5T Cardiac |
| 26 | U1-155166 | Patient Lower Body Pad, 1.5T 8CH Cardiac |
