1.5T Vanguard Breast MRI Tabletop Coil FRU

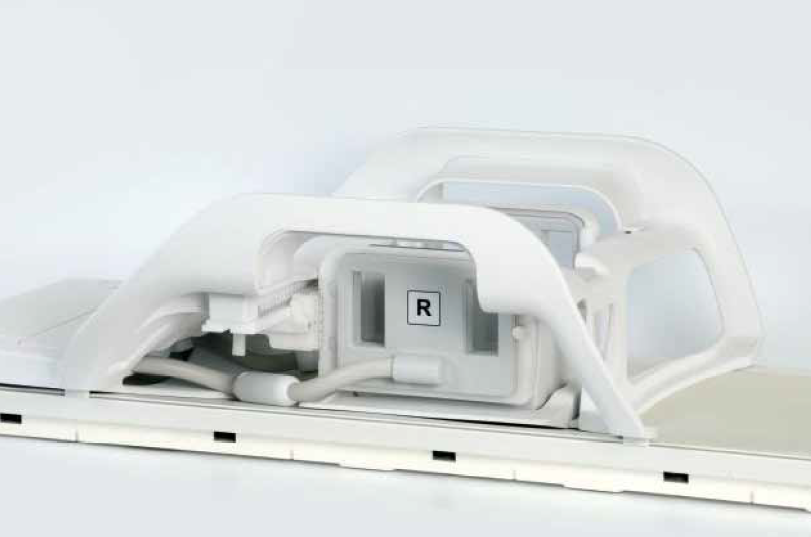

1.5T Vanguard Breast MRI Tabletop Coil - MCAT# M3340CW

ItemPart NumberDescription

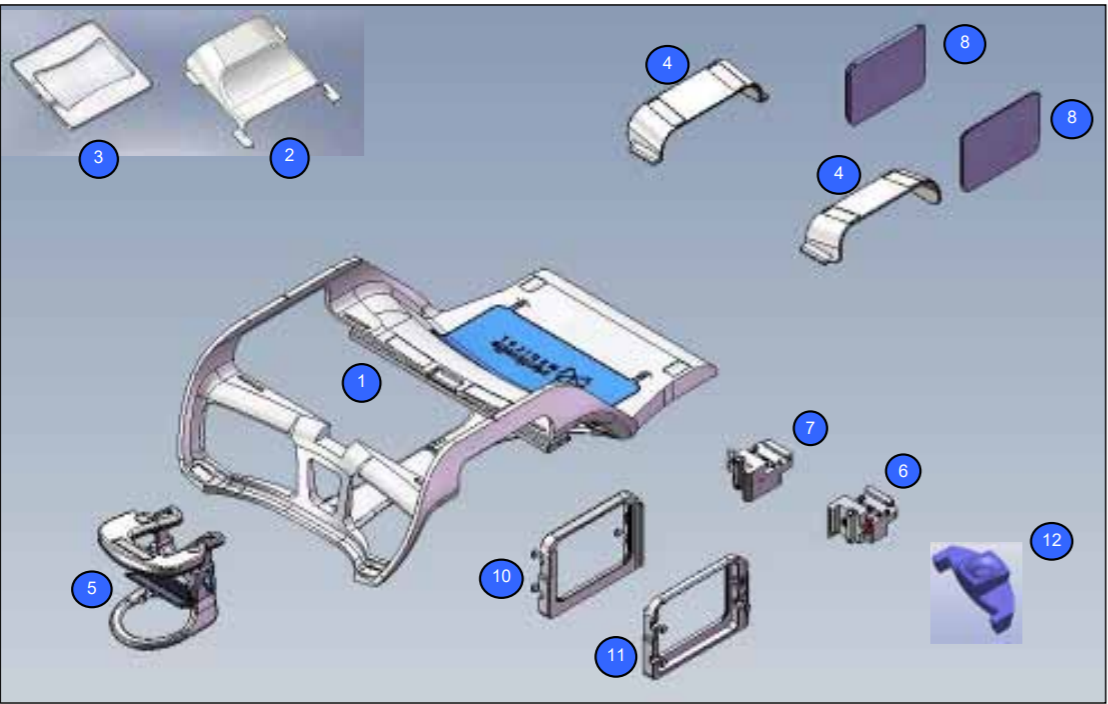

15408232Patient Support Assembly
25408233Contralateral Support
35408234Catchment
45408235Shoulder Bridge (QTY 2)
55408236Headrest Assembly
65408240Compression Slider Left
75408241Compression Slider Right
85408239Compression Plate
95408237Headrest Mirror Assembly
105408244Compression Frame Assy Right
115408245Compression Frame Assy Left
125407765-9GE Spherical Phantom Positioner

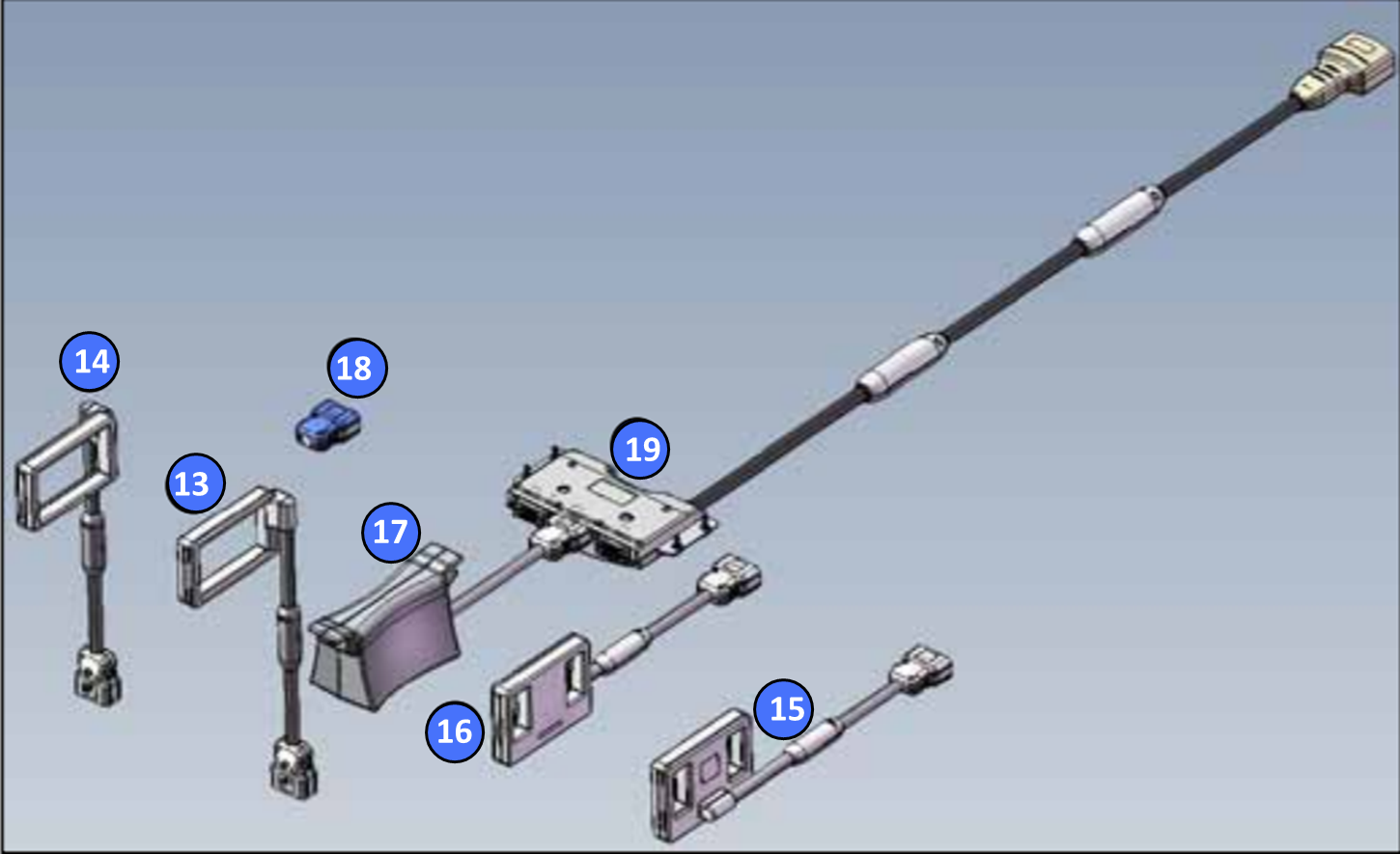

135419349-2Single Loop Left
145419349-3Single Loop Right
155419349-58-Ch Lateral Array Left
165419349-48-Ch Lateral Array Right
175419349-6Medial Coil
185419349-7Medial Plug
195419349-8Interface Box 1.5T VGTT

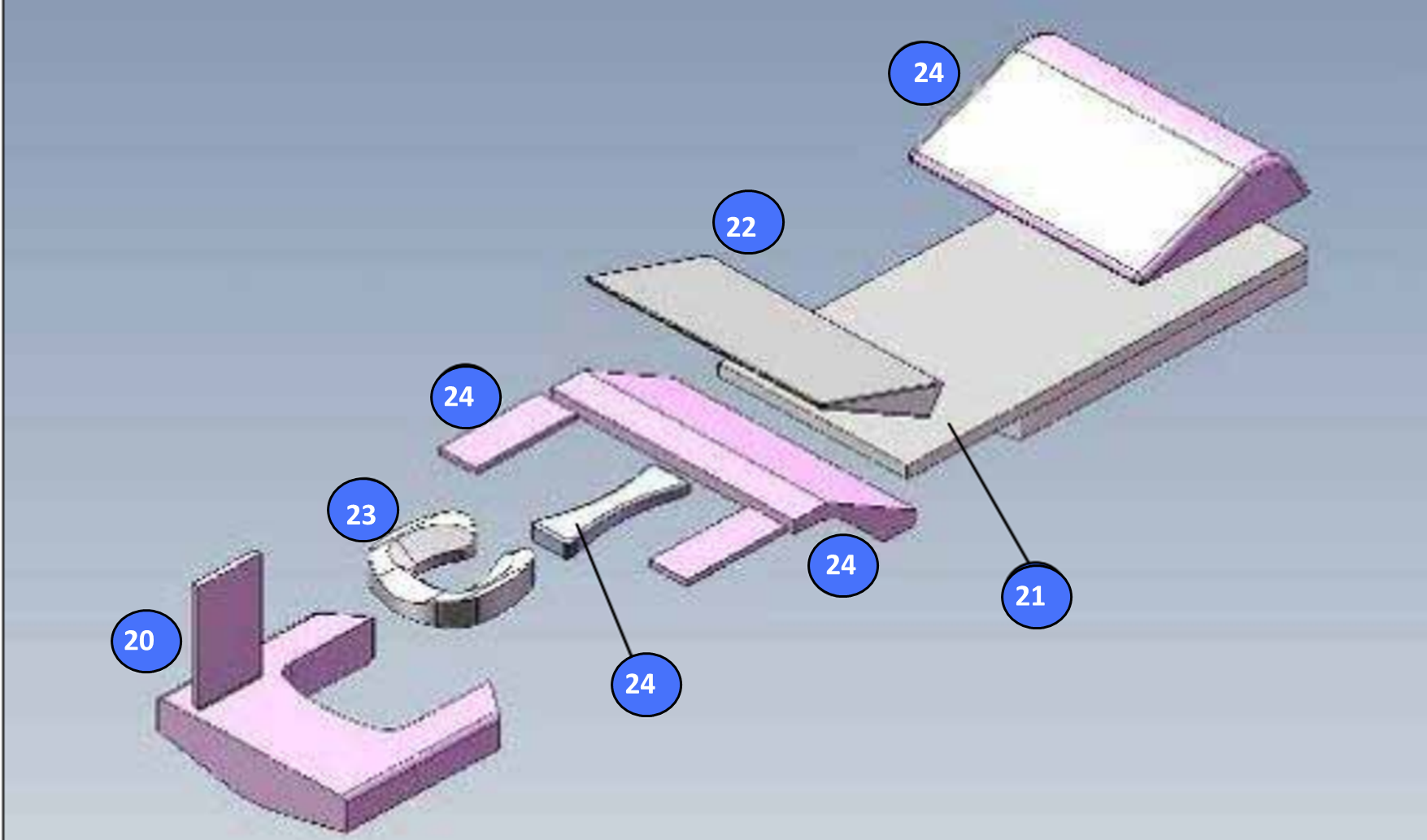

205408291Pad Arm Support
215408289Body Pad
225408288Wedge Pad
235408287Headrest Pad
245408290Padding Kit Table
255408251Compression Rail
365408250Table Alignment Tab
275408248Patient Support Cover
