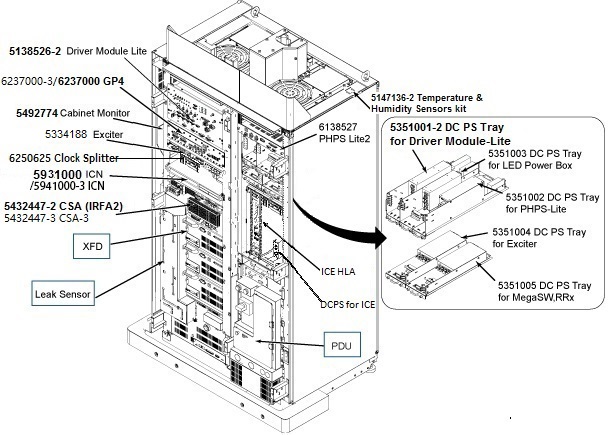

System Cabinet

Table 1. System Cabinet
Item	Part Number	Description	Qty	FRU	Lower
1	5334480–5	System Cabinet Frame Assy	1.0	Yes	System Cabinet Frame Assy
2	5341545-2	XFD	1.0	No	XFD
3	5351002	DC Power Supply Tray Assembly for PHPS-Lite	1.0	Yes
4	5351003	DC Power Supply Tray Assembly for LED Power Box	1.0	Yes
4	5351003–2	AC-DC Power Supply Tray Assembly for LED Power Box	1.0	No	AC-DC Power Supply Tray Assembly for LED Power Box
5	5351004	DC Power Supply Tray Assembly for Exciter	1.0	Yes
6	5351005	DC Power Supply Tray Assembly for MegaSW,RRx	1.0	Yes
7	5351001–2	DC Power Supply Tray Assembly for Driver Module-Lite	1.0	Yes
8	6138527-2	PHPS_lite2 ASSY - RoHS	1.0	Yes
9	6200100–3	ICE HLA	1.0	Yes	ICE HLA
10	5725996	DCPS for ICE	1.0	Yes
11	5139480-2	8-Port Switch Kit with 4 cushions	1.0	Yes
12	5492774	Cabinet Monitor Assembly	1.0	Yes
13	5931000	Image Compute Node: Gen6 16CH ICN	1.0	Yes	Image Compute Node: Gen6 16CH ICN
	5941000	Dell R640 (Gen7) Value with Dolphin Card	1.0	Yes	Table 13
	5941000-9	Dell R640 (Gen7-DL) Performance ICN with Dolphin Interface Card and GPU Card	1.0	Yes
14	5480028	Reference Clock and NB Exciter Module	1.0	Yes
14	5800078	1.5T Narrow-Band Exciter and Reference Clock Assembly	1.0	Yes
15	5138526-3	Driver Module_Lite3	1.0	Yes
16	5432447-2	IRFA2 (CSA)	1.0	Yes
16	5432447-3	CSA-3	1.0	Yes
17	6340354	Gradient Filter Box, RoHS	3.0	Yes
18	5334180-2	DM FILTER ASSY	1.0	Yes	DM FILTER ASSY

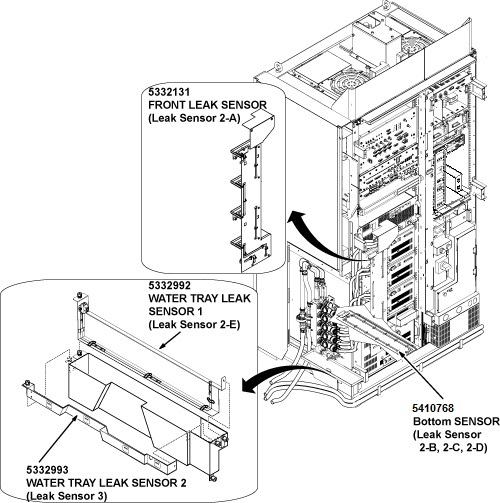

19	5332131	FRONT LEAK SENSOR ASSY	1.0	Yes
20	5332992	WATER TRAY LEAK SENSOR 1	1.0	Yes
21	5332993	WATER TRAY LEAK SENSOR 2	1.0	Yes
22	5410768	BOTTOM LEAK SENSOR ASSY	1.0	Yes
23	6613151	CAN terminator	1.0	Yes
24	6613106	Leak sensor strip for service test	1.0	Yes
25	6250625	Clock Splitter	1.0	Yes
26	5837328	New XFD-PS Control Board Assembly	1.0	Yes
27	5549353-2	New XFD-PS with FRU package	1.0	Yes
28	5985003	Leak sensor1	1.0	Yes
29	5985004	Leak sensor2	1.0	Yes

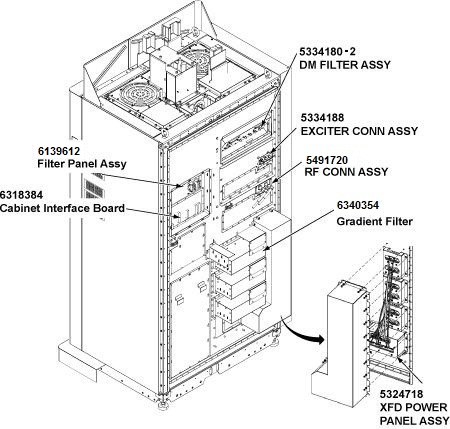

Table 2. Cabinet Rear Panel
Item	Part Number	Description	Qty	FRU	Lower
1	6139612	Filter Panel Assy	1.0	Yes
2	6318384	Cabinet Interface Board	2.0	Yes
3	5334188	EXCITER CONN ASSY	1.0	Yes
4	5491720	RF CONN ASSY	1.0	Yes
5	5324718	XFD POWER PANEL ASSY	2.0	Yes
6	5507148	USB Cable between host PC and ICE	1.0	Yes
7	6616003	PCIe Cable between ICE and ICN	1.0	Yes
8	6544000	Gradient Filter	1.0	Yes

System Cabinet Frame Assy

Table 3. System Cabinet Frame Assy
Item	Part Number	Description	Qty	FRU	Lower
1	5338521-6	PDU FRAME ASSY WITH BRKT	1.0	No	PDU Assy
2	5332030	CABINET TOP FAN ASSY	2.0	Yes
3	5323285–2	CABINET REAR PANEL ASSY	1.0	No	c_System-Cabinet_16551188.html#__SL3022250-1311766
4	5332990–2	WATER PLUMBING	1.0	Yes
5	6184426	TEMP SENSOR ASSY	2.0	Yes
6	6613059	DVMR link, IRF to Exciter	1.0	Yes
7	6613060	Optical Cable, Exciter to IRF	1.0	Yes

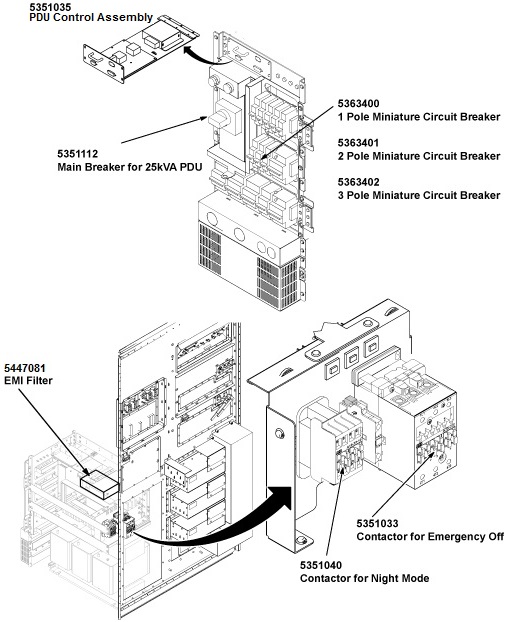

PDU Assy

Table 4. PDU Assy
Item	Part Number	Description	Qty	FRU	Lower
1	5351035	PDU Control Assembly	1.0	Yes
2	5351112	Main Breaker assembly	1.0	Yes
3	5447081	EMI Filter	1.0	Yes
4	5351033	Emergency contactor	1.0	Yes
5	5351040	Night Mode Contactor	1.0	Yes
6	5363400	1 Pole Miniature Circuit Breaker kit for PDU	1.0	Yes
7	5363401	2-Pole Miniature Circuit Breaker kit for PDU	1.0	Yes
8	5363402	3-Pole Miniature Circuit Breaker kit for PDU	1.0	Yes

Collector of System Cabinet AC Cables

Table 5. Collector of System Cabinet AC Cables
Part Number	Description	Qty	FRU
6613000	Collector of cabinet AC cables	1	Yes
6613043	Cable, AC line for GP3 and XFA	1.0	No
6613044	AC cable for XFD_PS	1.0	No
6613046	Cable, PS for PHPS to PHPS and PP	1.0	No
6613047	Cable, PDU to filter for blower in PP	1.0	No
6613036	Cable, AC line for RFA	1.0	No
6613080–2	AC line for PS for DOCK and PHPS	1.0	No
6613082–2	AC line for PS for Exciter and Receiver	1.0	No
6613076–2	AC line for PS for Dvier Module_Lite	1.0	No

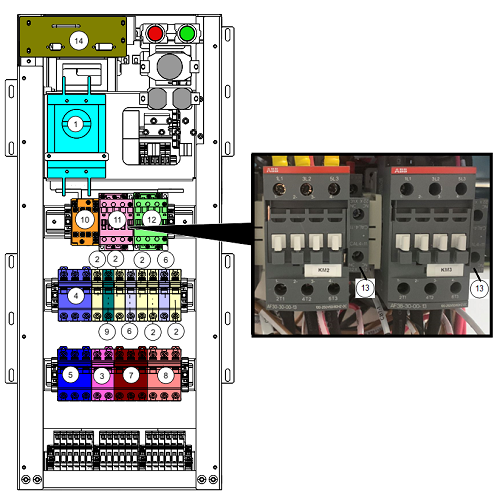

PDU for new XFD-PS

Table 6. PDU Low Level FRU
Item	Part Number	Description	Qty	FRU	Lower
1	5855236	Main Breaker XT2N 125 Ekip 100A	1.0	Yes	-
2	5803104	Miniature Circuit Breaker S200M-1P-K-10A	1.0	Yes	-
3	5803107	Miniature Circuit Breaker S200M-2P-K-10A	1.0	Yes	-
4	5803110	Miniature Circuit Breaker S200M-3P-K-32A	1.0	Yes	-
5	5803111	Miniature Circuit Breaker S200M-3P-K-50A	1.0	Yes	-
6	5729834	Miniature Circuit Breaker S201M-K16	1.0	Yes	-
7	5729833	Miniature Circuit Breaker S203M-K16	1.0	Yes	-
8	5729831	Miniature Circuit Breaker S203M-K40	1.0	Yes	-
9	5858824	Miniature Circuit Breaker S201M-K32	1.0	Yes	-
10	5803113	Block Contactor 690V 18A@AC3 100-250V50/60HZ	1.0	Yes	-
11	5803114	Block Contactor 690V 32A@AC3 100-250V50/60HZ	1.0	Yes	-
12	5803115	Block Contactor 690V 38A@AC3 100-250V50/60HZ	1.0	Yes	-
13	5857174	ABB Auxiliary Contact Block CAL4-11	1.0	Yes	-
14	5858804	PDU control Assembly	1.0	Yes	-

XFD

Table 7. XFD
Item	Part Number	Description	Qty	FRU	Lower

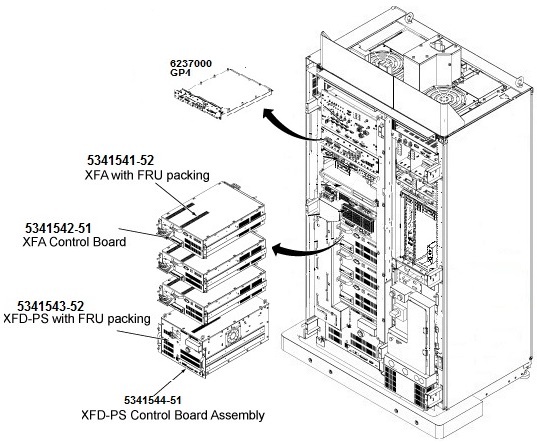

1		XFA with packing box for normal shipment	3.0	No	XFA with packing box for normal shipment
2		XFD-PS with packing box for normal shipment	1.0	No	XFD-PS with packing box for normal shipment
3	6237000	GP4 Assembly	1.0	Yes	GP4 Assembly
3	6237000-3	GP4 Assembly Note: This GP4 is only compatible with software SV25.2_R01 and later	1.0	Yes	GP4 Assembly

XFA with packing box for normal shipment

Table 8. XFA with packing box for normal shipment
Item	Part Number	Description	Qty	FRU	Lower
1	5341542-51	XFA Control Board Assembly RoHS Compliant	1.0	Yes
2	5341541-52	XFA with FRU packing RoHS Compliant	1.0	Yes

XFD-PS with packing box for normal shipment

Table 9. XFD-PS with packing box for normal shipment
Item	Part Number	Description	Qty	FRU	Lower
1	5341544-51	XFD-PS Control Board Assembly RoHS Compliant	1.0	Yes
2	5341543-52	XFD-PS with FRU packing RoHS compliant	1.0	Yes

GP4 Assembly

Table 10. GP4 Assembly
Item	Part Number	Description	Qty	FRU	Lower
1	5764096-2	SFP-Optical Receiver	1	Yes

AC-DC Power Supply Tray Assembly for LED Power Box

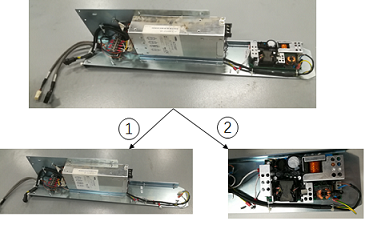

Figure 6. AC-DC Power Supply Tray Assembly

Table 11. AC-DC Power Supply Tray Assembly
Item	Part Number	Description	Qty	FRU	Lower
1	5803648	DCPS Tray	1.0	Yes
2	5803655	AC-DC Power Supply	1.0	Yes

ICE HLA

Table 12. ICE HLA
Item	Part Number	Description	Qty	FRU	Lower
1	5485930	ICE Fan	2.0	Yes
2	5764096-2	SFP-Optical Receiver	4.0	Yes

Image Compute Node: Gen6 16CH ICN

Table 13.
Item	Part Number	Description	Qty	FRU	Lower
1	5931100–20	495W Power Supply	1.0	Yes
2	5931100–22	Flash Card	1.0	Yes
3	5931100–23	400GB SSD	1.0	Yes

DM FILTER ASSY

Table 14. DM FILTER ASSY
Item	Part Number	Description	Qty	FRU	Lower
1	5413053	G3 MULTICOIL FILTER ASM	1.0	Yes
2	5413049	G3 MC PREAMP BIAS FILTER ASM	1.0	Yes
