Straps and Pads for Patient Table

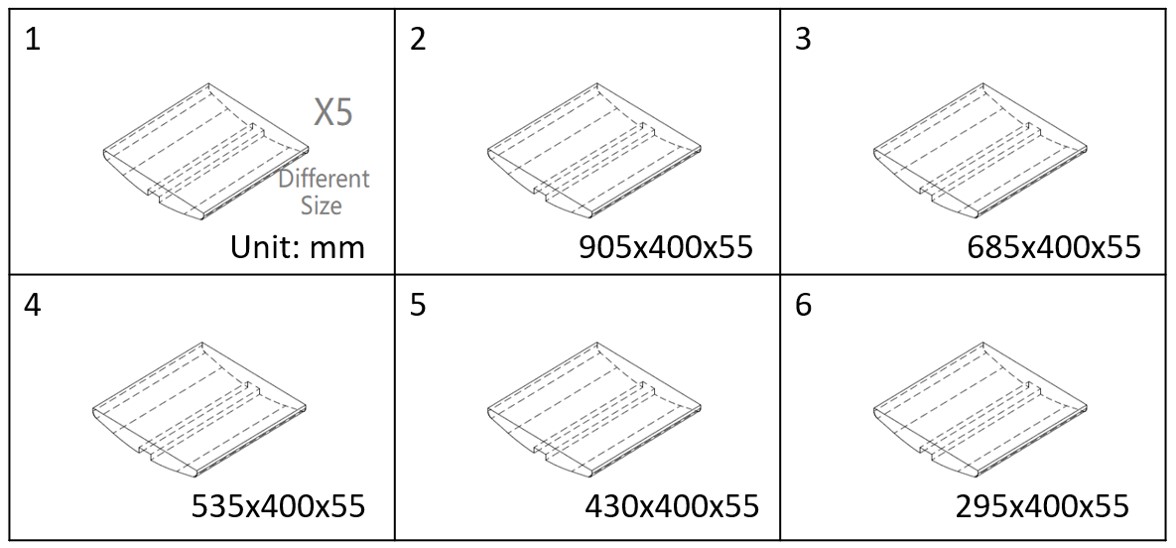

Figure 1. Cradle Filler Pad

Table 1.
Item	P/N	Description	Lower Level FRU	Quantity	FRU
1	5364439	Cradle filler pad	2 to 6	1	Yes
2	5343899	Cradle Filler Pad 1		1	No
3	5343899-2	Cradle Filler Pad 2		1	No
4	5343899-3	Cradle Filler Pad 3		1	No
5	5343899-4	Cradle Filler Pad 4		1	No
6	5343899-5	Cradle Filler Pad 5		1	No

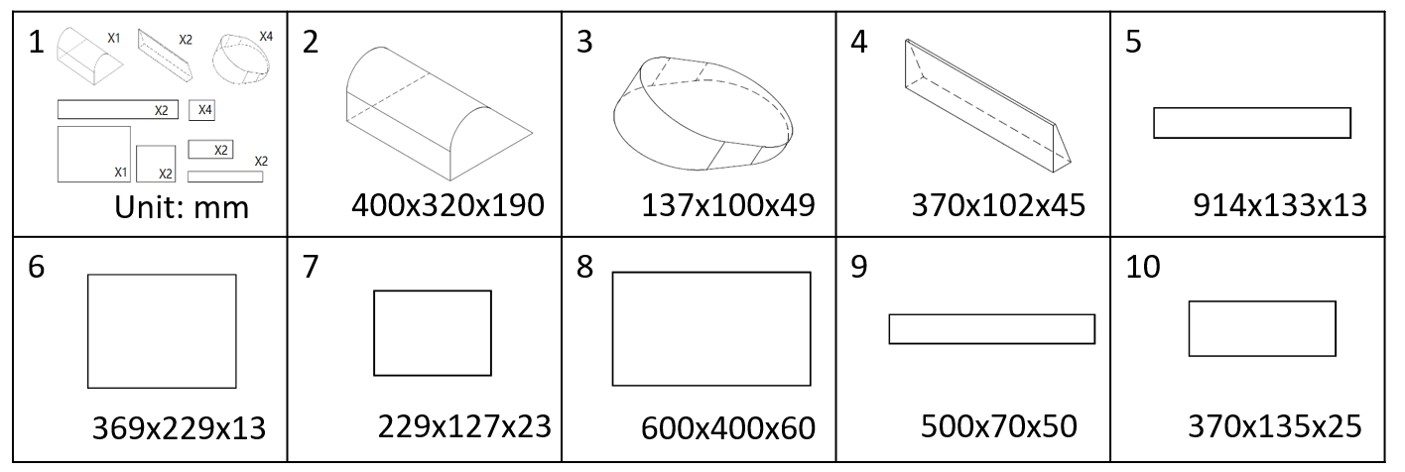

Figure 2. Patient table common use pad set

Table 2.
Item	P/N	Description	Lower Level FRU	Quantity	FRU
1	5364441	Patient table common use pad set Note: This FRU kit is not used in Lite Table	2 to 10	1	Yes
2	5343900	Knee pad		1	Yes
3	5343906	Wedge pad		4	Yes
4	5343902	Triangle pad		2	No
5	5343904	Separation pad 1		2	No
6	5343904-2	Separation pad 2		2	No
7	5343904-3	Separation pad 3		4	No
8	5343901	Pillow pad		1	No
9	5343905	Arm support pad		2	No
10	5343903	Rectangular Pad		2	No

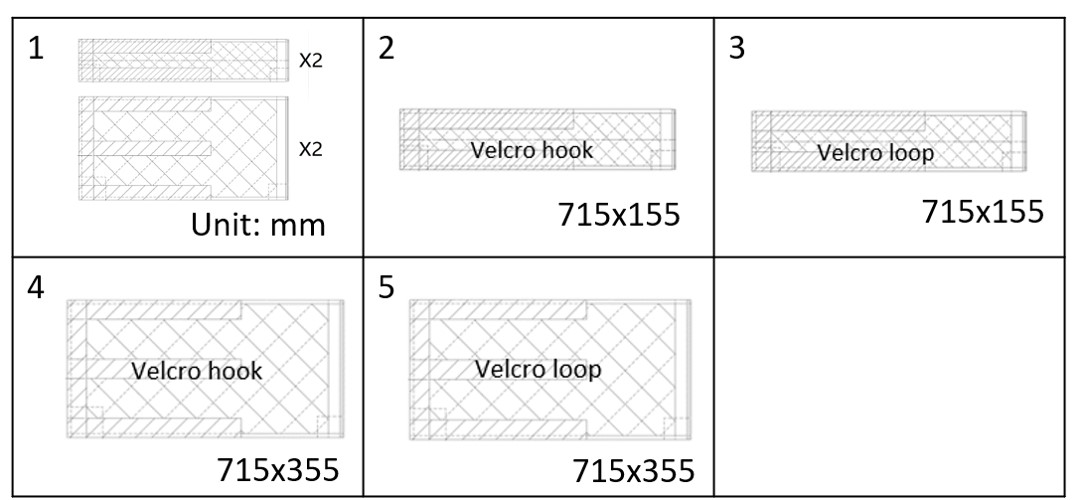

item	P/N	Description	Lower Level FRU	Quantity	FRU
1	5352851	strap kit	2 to 5	1	Yes
2	5344673	Strap 2		1	No
3	5344672	Strap 1		1	No
4	5344674	Strap W1		1	No
5	5344675	Strap W2		1	No
