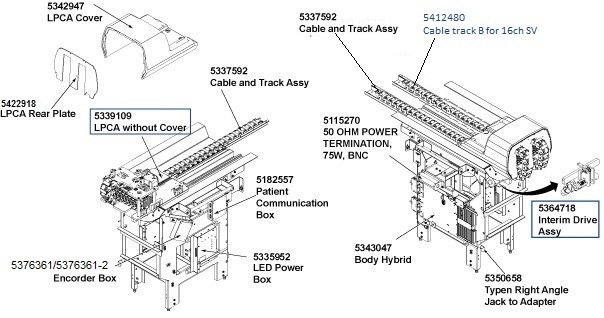

Rear Pedestal

Table 1. Rear Pedestal
Item	Part Number	Description	Qty	FRU	Lower
1	5324703	SV REAR PEDESTAL FRAME ASSY	1.0	No	Table 2
2	5364718	Interim Drive Assy	1.0	Yes	Table 3
3	5342939	REAR SPLIT BRIDGE Assy	1.0	Yes
4	5339109–2	LPCA without Cover, 16CH	1.0	No	Table 5
5	5337592	CABLE AND TRACK ASSembly for LPCA Port A	1.0	Yes	Table 6
6	5335952	LED POWER BOX ASSY	1.0	Yes
7	5342947	LPCA cover Assy	1.0	Yes

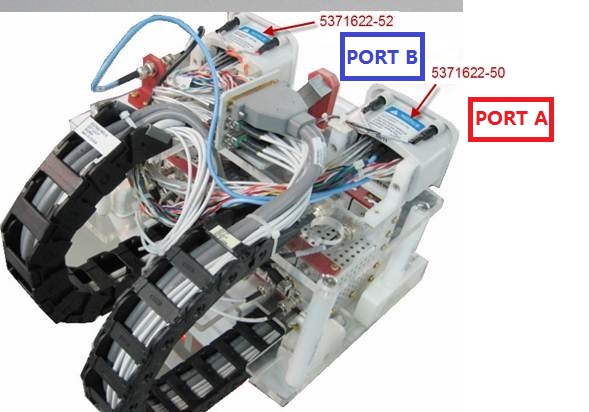

8	5371622–50	A+ Bezel Cable Harness, Hypertronics	1.0	Yes
9	5371622–52	B16 Bezel Cable Harness Hypertronics	1.0	Yes
10	5343047–3	Body Hybrid TR SW for SV	1.0	Yes	Table 8
10	5178275-2	NMR Netcom Splitter with L Bracket supporting the pre amp and filter	1.0	Yes
11	5376361	Encorder Box for Value MG3 A1	1.0	Yes
11	5376361-2	Encoder Box Assy-New Sensor	1.0	Yes
12	5364022	Patient Communication Box II for HDe, MG3 A2	1.0	Yes
13	5422918	SV LPCA Rear Plate for track A B	1.0	Yes
14	5333382	RF Cable, MG2-A12-A1-J2 TO MG3-A3-J3	1.0	Yes
15	5333383	RF Cable, MG2-A12-A1-J1 TO MG3-A3-J4	1.0	Yes
16	5350658	AMPHENOL 82-98, TYPE N, RIGHT-ANGLE, JACK TO PLUG ADAPTER	1.0	Yes
17	5343045	NUT	3.0	Yes
18	5333028	SV LPCA Base Plate	1.0	Yes
19	5338218	Plunger Slide	1.0	Yes
20	6622002	RF Tx Cable Kit for Value	1.0	Yes
21	6622003	RF Tx Extension Cable Kit for value	1.0	Yes
22	5112710-2	SUPPORT, BELT RADIUS	1.0	Yes
23	5412480	Cable Track B, for 16CH SV	1.0	Yes
24	5333191	SV TRAVEL SENSOR FLAG	1.0	Yes
25	5413050	SV Ground Isolation box	1.0	Yes

SV REAR PEDESTAL FRAME ASSY

Table 2. SV REAR PEDESTAL FRAME ASSY
Item	Part Number	Description	Qty	FRU	Lower
1	5115270	50 OHM POWER TERMINATION, 75W, BNC	1.0	Yes

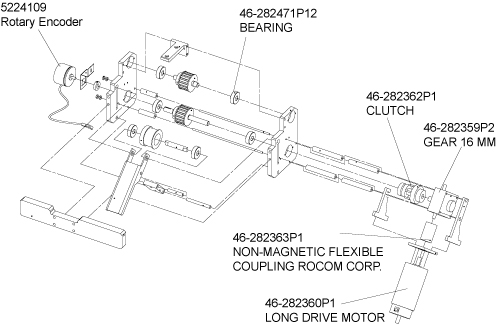

Table 3. SV REAR PEDESTAL MOTOR DRIVE ASSY
Item	Part Number	Description	Qty	FRU	Lower
1	46-282359P2	GEAR 16 MM	1.0	Yes
2	46-282360P1	LONG DRIVE MOTOR, MG3-A7	1.0	Yes
3	5224109	Rotary Encoder	1.0	Yes
4	46-282362P1	CLUTCH CLUTCH, ADJUSTABLE TORQUE ADJUSTABLE RANGE = 1.8 TO 50LB/INCH, FOR 0.500~ SHAFT DIAMETERS, 2.0~ PRESSURE PLATE DIAMETER.	1.0	Yes
5	46-282363P1	NON-MAGNETIC FLEXIBLE COUPLING ROCOM CORP. #AT0125-1017-1	1.0	Yes
6	46-282471P12	BEARING SKF BEARING #1621 DC MAGNETIC	6.0	Yes

Table 4. Multicoil Interface Module
Item	Part Number	Description	Qty	FRU	Lower
1	5482640	INTERFACE ENCLOSURE AND MOTHER BOARD ASSEMBLY	1.0	Yes
2	5482644	1.5T MULTICOIL PREAMP MODULE	8.0	Yes

Table 6. CABLE AND TRACK ASSY for LPCA Port A
Item	Part Number	Description	Qty	FRU
1	5333379	MG2-A14-A1 TO MG3-A2-J7	1.0	Yes
2	5333362	Cable MG2-A41-J21 to MG2-A8 J9-J16	1.0	Yes
3	5333360	Cable MG2-A41-J11 To MG2-A16-LED	1.0	Yes

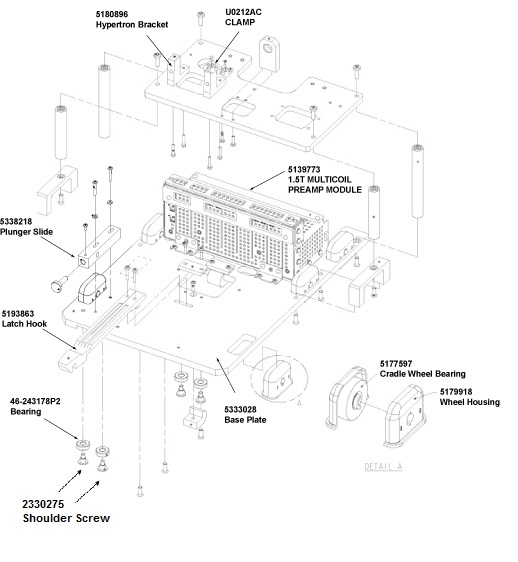

Table 7. SV LPCA SUB ASSY
Item	Part Number	Description	Qty	FRU	Lower
1	5179918	WHEEL HOUSING, MOLDED NORYL	12.0	Yes
2	5177597	Cradle Wheel Bearing - 11 ball	6.0	Yes
3	46-243178P2	BEARING ID 0.375~, OD 0.875~, WIDTH 0.281~ OPEN, TURCITE PLASTIC 0.000~-0.004~ RAD PLAY 08 BALLS, 5/32~ DIA	4.0	Yes
4	5180896	Hypertron bracket	2.0	Yes
5	U0212AC	CLAMP TMS_20	3.0	Yes
6	5338217	Screw LPCA	1.0	Yes
7	2330275	Shoulder Screw	4.0	Yes

Table 8. Body Hybrid TR SW for SV
Item	Part Number	Description	Qty	FRU	Lower
1	5416994	Pre-Amp ASM for SV 1.5T	1.0	Yes
