Rear Pedestal

Table 1. Rear Pedestal
Item	Part Number	Description	Qty	FRU	Lower
1	5324703	SV REAR PEDESTAL FRAME ASSY	1.0	No	SV REAR PEDESTAL FRAME ASSY
2	5364718	Interim Drive Assy	1.0	Yes	SV REAR PEDESTAL MOTOR DRIVE ASSY
3	5342939	REAR SPLIT BRIDGE Assy	1.0	Yes
4	5339109–2	LPCA without Cover, 16CH	1.0	No	LPCA without Cover, 16CH
5	5337592	CABLE AND TRACK ASSembly for LPCA Port A	1.0	Yes
6	5335952	LED POWER BOX ASSY	1.0	Yes
7	5342947	LPCA cover Assy	1.0	Yes

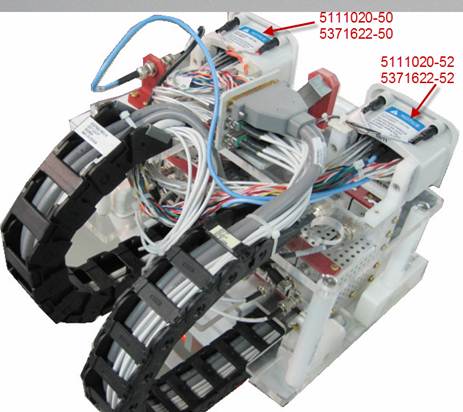

9	5111020-50	HDMR2 A plus Bezel and cable harness	1.0	Yes
10	5111020–52	HDMR2 B16 Bezel and cable harness	1.0	Yes
11	5371622–50	A+ Bezel Cable Harness, Hypertronics	1.0	Yes
12	5371622–52	B16 Bezel Cable Harness Hypertronics	1.0	Yes
14	5343047	Body Hybrid TR SW for SV	1.0	Yes	Body Hybrid TR SW for SV
16	5145626	Encorder Box for Value MG3 A1	1.0	Yes
17	5182557	Patient Communication Box II for HDe, MG3 A2	1.0	Yes
25	5422918	SV LPCA Rear Plate for track A B	1.0	Yes
302	5333382	RF Cable, MG2-A12-A1-J2 TO MG3-A3-J3	1.0	Yes
303	5333383	RF Cable, MG2-A12-A1-J1 TO MG3-A3-J4	1.0	Yes
	5368066	SV LPCA MECH FRU KIT	1.0	Yes
	5368066-2	SV LPCA MECH FRU KIT,ROHS	1.0	Yes
	5350658	AMPHENOL 82-98, TYPE N, RIGHT-ANGLE, JACK TO PLUG ADAPTER	1.0	Yes
	5343045	NUT	3.0	Yes
	5333028	SV LPCA Base Plate	1.0	Yes
	5338218	Plunger Slide	1.0	Yes
	6622002	RF Tx Cable Kit for Value	1.0	Yes
	6622003	RF Tx Extension Cable Kit for value	1.0	Yes

SV REAR PEDESTAL FRAME ASSY

Table 2. SV REAR PEDESTAL FRAME ASSY
Item	Part Number	Description	Qty	FRU	Lower
24	5115270	50 OHM POWER TERMINATION, 75W, BNC	1.0	Yes

Table 3. SV REAR PEDESTAL MOTOR DRIVE ASSY
Item	Part Number	Description	Qty	FRU	Lower
15	46-282359P2	GEAR 16 MM	1.0	Yes
16	46-282360P1	LONG DRIVE MOTOR, MG3-A7	1.0	Yes
17	5224109	Rotary Encoder	1.0	Yes
18	46-282362P1	CLUTCH CLUTCH, ADJUSTABLE TORQUE ADJUSTABLE RANGE = 1.8 TO 50LB/INCH, FOR 0.500~ SHAFT DIAMETERS, 2.0~ PRESSURE PLATE DIAMETER.	1.0	Yes
19	46-282363P1	NON-MAGNETIC FLEXIBLE COUPLING ROCOM CORP. #AT0125-1017-1	1.0	Yes
22	46-282471P12	BEARING SKF BEARING #1621 DC MAGNETIC	6.0	Yes

Table 4. SV REAR PEDESTAL MOTOR DRIVE ASSY
Item	Part Number	Description	Qty	FRU	Lower
1	5148493	INTERFACE ENCLOSURE AND MOTHER BOARD ASSEMBLY	1.0	Yes
2	5139773	1.5T MULTICOIL PREAMP MODULE	8.0	Yes

Table 6. SV LPCA SUB ASSY
Item	Part Number	Description	Qty	FRU	Lower
3	5179918	WHEEL HOUSING, MOLDED NORYL	12.0	Yes
4	5177597	Cradle Wheel Bearing - 11 ball	6.0	Yes
6	46-243178P2	BEARING ID 0.375~, OD 0.875~, WIDTH 0.281~ OPEN, TURCITE PLASTIC 0.000~-0.004~ RAD PLAY 08 BALLS, 5/32~ DIA	4.0	Yes
13	5180896	Hypertron bracket	2.0	Yes
40	U0212AC	CLAMP TMS_20	3.0	Yes
	5338217	Screw LPCA	1.0	Yes

Table 7. Body Hybrid TR SW for SV
Item	Part Number	Description	Qty	FRU	Lower
	5416994	Pre-Amp ASM for SV 1.5T	1.0	Yes
