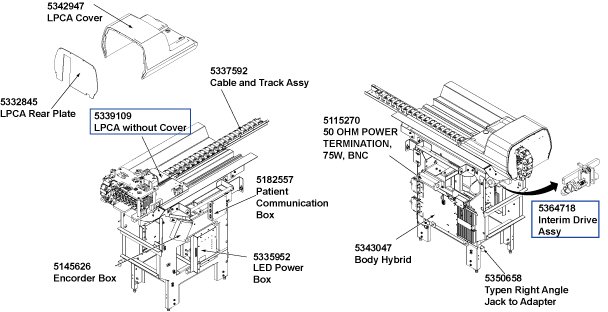

Rear Pedestal

Table 1. Rear Pedestal
Item	Part Number	Description	Qty	FRU	Lower
1	5324703	SV REAR PEDESTAL FRAME ASSY	1.0	No	SV REAR PEDESTAL FRAME ASSY
2	5364718	Interim Drive Assy	1.0	Yes	SV REAR PEDESTAL MOTOR DRIVE ASSY
3	5342939	REAR SPLIT BRIDGE Assy	1.0	Yes
4	5339109	SV LPCA without Cover, A port only	1.0	No	SV LPCA without Cover, A port only
5	5337592	CABLE AND TRACK ASSembly for LPCA Port A	1.0	Yes
6	5335952	LED POWER BOX ASSY	1.0	Yes
7	5342947	LPCA cover Assy	1.0	Yes
8	5371622-52	B16 Bezel Cable Harness, Hypertronics	1.0	Yes
9	5343047	Body Hybrid TR SW for SV	1.0	Yes	Body Hybrid TR SW for SV
10	5145626	Encorder Box for Value MG3 A1	1.0	Yes
	5376361	Encorder Box for Value MG3 A1	1.0	Yes
	5376361-2	Encoder Box Assy-New Sensor	1.0	Yes
11	5182557	Patient Communication Box II for HDe, MG3 A2	1.0	Yes
12	5332845	SV lpca rear plate	1.0	Yes
13	5333382	RF Cable, MG2-A12-A1-J2 TO MG3-A3-J3	1.0	Yes
14	5333383	RF Cable, MG2-A12-A1-J1 TO MG3-A3-J4	1.0	Yes
15	5368066–2	SV LPCA MECH FRU KIT,ROHS	1.0	Yes
16	5350658	AMPHENOL 82-98, TYPE N, RIGHT-ANGLE, JACK TO PLUG ADAPTER	1.0	Yes
17	5343045	NUT	3.0	Yes
18	5333028	SV LPCA Base Plate	1.0	Yes
19	5338218	Plunger Slide	1.0	Yes
20	6622002	RF Tx Cable Kit for Value	1.0	Yes
21	6622003	RF Tx Extension Cable Kit for value	1.0	Yes
22	5413050	SV Ground Isolation box	1.0	Yes

SV REAR PEDESTAL FRAME ASSY

Table 2. SV REAR PEDESTAL FRAME ASSY
Item	Part Number	Description	Qty	FRU	Lower
24	5115270	50 OHM POWER TERMINATION, 75W, BNC	1.0	Yes

Table 3. SV REAR PEDESTAL MOTOR DRIVE ASSY
Item	Part Number	Description	Qty	FRU	Lower
15	46-282359P2	GEAR 16 MM	1.0	Yes
16	46-282360P1	LONG DRIVE MOTOR, MG3-A7	1.0	Yes
17	5224109	Rotary Encoder	1.0	Yes
18	46-282362P1	CLUTCH CLUTCH, ADJUSTABLE TORQUE ADJUSTABLE RANGE = 1.8 TO 50LB/INCH, FOR 0.500~ SHAFT DIAMETERS, 2.0~ PRESSURE PLATE DIAMETER.	1.0	Yes
19	46-282363P1	NON-MAGNETIC FLEXIBLE COUPLING ROCOM CORP. #AT0125-1017-1	1.0	Yes
22	46-282471P12	BEARING SKF BEARING #1621 DC MAGNETIC	6.0	Yes

Table 4. SV REAR PEDESTAL MOTOR DRIVE ASSY
Item	Part Number	Description	Qty	FRU	Lower
1	5148493	INTERFACE ENCLOSURE AND MOTHER BOARD ASSEMBLY	1.0	Yes
2	5139773	1.5T MULTICOIL PREAMP MODULE	8.0	Yes

Table 5. SV LPCA without Cover, A port only
Item	Part Number	Description	Qty	FRU	Lower
1	5351792	SV LPCA SUB ASSY	1.0	No	SV LPCA SUB ASSY
2	5193863	NEW LPCA LATCH HOOK	1.0	Yes
3	5111020-50	HDMR2 A plus Bezel and cable harness	1.0	Yes

Table 6. SV LPCA SUB ASSY
Item	Part Number	Description	Qty	FRU	Lower
3	5179918	WHEEL HOUSING, MOLDED NORYL	12.0	Yes
4	5177597	Cradle Wheel Bearing - 11 ball	6.0	Yes
6	46-243178P2	BEARING ID 0.375~, OD 0.875~, WIDTH 0.281~ OPEN, TURCITE PLASTIC 0.000~-0.004~ RAD PLAY 08 BALLS, 5/32~ DIA	4.0	Yes
13	5180896	Hypertron bracket	2.0	Yes
40	U0212AC	CLAMP TMS_20	2.0	Yes
	5338217	Screw LPCA		Yes

Table 7. Body Hybrid TR SW for SV
Item	Part Number	Description	Qty	FRU	Lower
	5416994	Pre-Amp ASM for SV 1.5T	1.0	Yes
