• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30D43F20GYZ
  • Topic ID: id_13106027 Version: 1.2
  • Date: Feb 4, 2021 10:00:05 PM

PP COVER RF PANEL SET

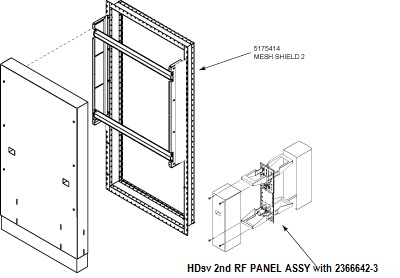

Figure 1. PP COVER RF PANEL SET
Item Part Number Description Qty FRU Lower Assy
15332032-2HDsv 2nd RF PANEL ASSY with 2366642-31.0No SECOND RF FILTER ASSY
25333894MESH SHIELD 21.0Yes

SECOND RF FILTER ASSY

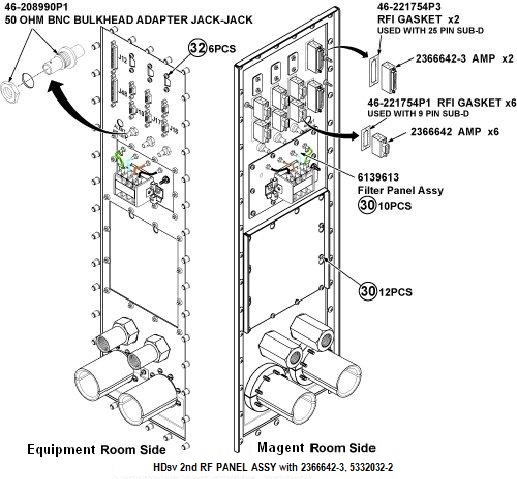

Figure 2. SECOND RF FILTER ASSY with 2366642-3
Table 1. SECOND RF FILTER ASSY
Item Part Number Description Qty FRU Lower Assy
106139613Filter Panel Assy1.0Yes
112366642CONNECTOR 9 CONTACTS 200 VOLTS 5 AMP6.0Yes
1246-221754P1RFI GASKET USED WITH 9 PIN SUB-D HDF OR HDP, METAL SHELL CONNECTORS. BRIGHT TIN PLATED BRASS, .006 THK6.0Yes
132366642-5CONNECTOR 25CONTACTS 200 VOLTS 5 AMP2.0Yes
1446-221754P3RFI GASKET USED WITH 25 PIN SUB-D HDF OR HDP, METAL SHELL CONNECTORS. BRIGHT TIN PLATED BRASS, .006 THK2.0Yes
1546-208990P150 OHM BNC BULKHEAD ADAP~R JACK-JACK (.510~ MGT HOLE, .187~ THICK PANEL) PRESSURIZED/GLASS-TFE, INSUL./INTERN AL LOCK WASHER TEETH.3.0Yes
5855449MULAN AC LINE FILTER COLLECTOR 1.0Yes
