- SIGNA MR355 / SIGNA MR360
- Service Manual
- 5856356-3EN Revision 5.0
- Basic Service Documentation. Copyright General Electric Company.
- 00000018WIA30363F20GYZ
- id_131061301.7
- Apr 29, 2020 2:02:40 AM
GOC

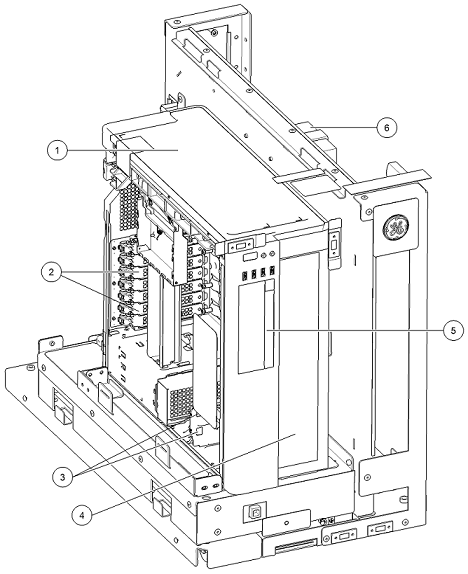

T5810 OC
| Item | Part Number | Description | Qty | FRU | Lower |
| 1 | 8770011–21 | Dell T5810 HOST PC | 1.0 | Yes | |
| 2 | 5729035 | PCI AA collector | 1.0 | Yes | |
| 3 | 8770011–102 | 512GB SSD | 2.0 | Yes | |
| 4 | 5192248-5 | Dust filter | 1.0 | Yes | |
| 5 | 8770011–101 | DVD-RW Optical | 1.0 | Yes | |
| 6 | 5139480-2 | 8-Port Switch Kit with 4 cushions | 1.0 | Yes | |
| 5147136–2 | Temperature & Humidity Sensors kit | 1.0 | Yes | ||
| 5129534–3 | Host PC CMOS Battery | 1.0 | Yes | ||
| 5499218 | Power Distribution Supply | 1.0 | Yes | ||
| 5503341 | OC cable collector | 1.0 | Yes | See T5810 OC cable collector |
T5810 OC cable collector
| Item | Part Number | Description | Qty | FRU | Lower |
| 1 | 5339070 | Main Monitor DVI-D Cable | 1.0 | Yes | |
| 2 | 5339069 | USB Extension Cable | 1.0 | Yes | |
| 3 | 5308574 | SCIM-PCI AA CBL | 1.0 | Yes | |
| 5 | 5339068 | Audio Cable Assembly | 1.0 | Yes |

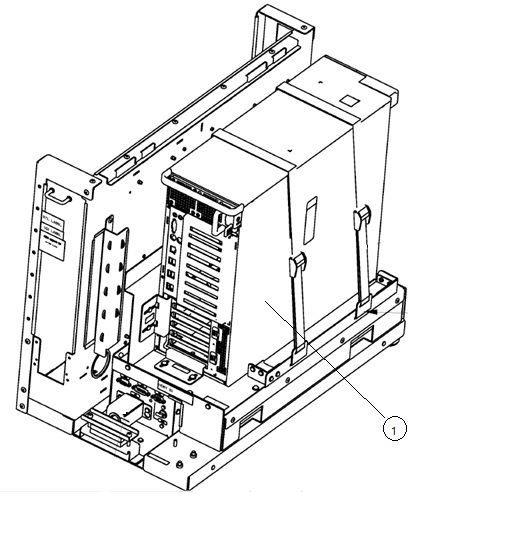

T5820 OC
| Item | Part Number | Description | Qty | FRU | Lower |
| 1 | 8780011-02 | PC (T5820) | 1 | Yes | |
| 8780011-101 | DVD drive | 1 | Yes | ||
| 8780011-102 | SSD 512GB SATA III SFF 3D-TLC or V NAND Memory | 2 | Yes | ||
| 2395043-2 | GOC AUDIO BOX | 1 | Yes | ||
| 5502029-2 | GOC Power Distribution Unit with 1-wire | 1 | Yes | ||
| 5796792 | GOC Common Cable collector | 1 | Yes | See T5820 OC cable collector | |
| 5793940 | GOC DUST FILTER FOR T5820 | 1 | Yes | ||
| 5129534-3 | Host PC CMOS Battery | 1 | No |
T5820 OC cable collector
| Item | Part Number | Description | Qty | FRU | Lower |
|---|---|---|---|---|---|
| 5339069 | USB Extension Cable | 1 | Yes |
